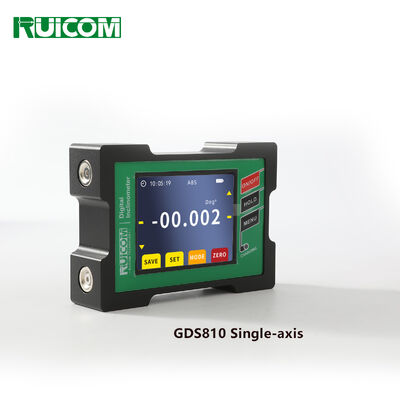

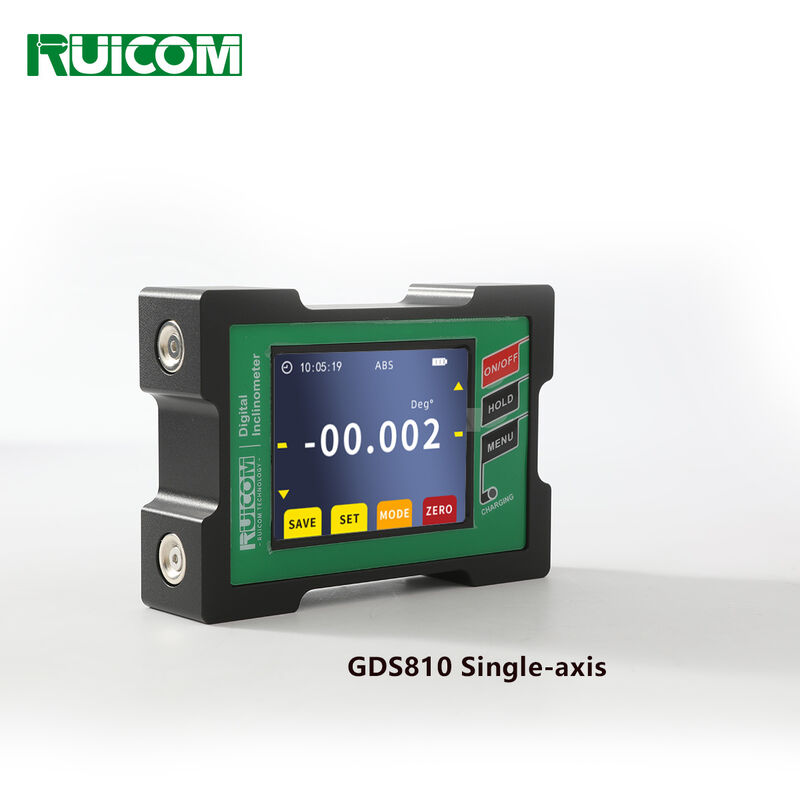

GDS810 Digital Single Axis Inclinometer High Precision For Architectural Surveying

RUICOM Technology GDS8 series digital inclinometer is a high-precision angle measurement and control device specifically developed for industrial applications. This product, the result of three years of technological breakthroughs, employs micro-mechanical sensing technology and features dual measurement cores. Through a dynamic compensation mechanism between the Y and X axes, combined with a proprietary cross-compensation algorithm and temperature compensation model, it significantly improves measurement accuracy and long-term stability.

Product Features:

1. Supports single/dual-axis measurement, with a range of ±30°.

2. Resolution 0.001°, full-range accuracy <0.005°.

3. Fast-response design, stable and reliable data output.

4. Innovative magnetic structure, supporting multi-directional installation (side/bottom).

5. Equipped with data storage function, supporting switching between three measurement units (angle/degree/minute/second/mm/m).

This product offers significant advantages in industrial reliability, ease of operation, and cost-effectiveness. Its technological innovation has been protected by multiple patents, enabling it to meet the precise measurement needs of various harsh industrial environments.

Technical Characteristics

❖ Full-range accuracy better than 0.005°;

❖ Repeatability error ≤0.003°;

❖ Supports absolute/relative measurement switching;

❖ It can record key measurement data;

❖ Strong magnetic adsorption design adapts to different installation requirements;

❖ Angle over-limit alarm can be set.

Application Field

❖ Architectural surveying                                      ❖ Vehicle alignment and four-wheel calibration

❖ Road and slope gradient detection                      ❖ Pipeline laying and angle control

❖ Mechanical equipment installation and leveling    ❖ Tooling and fixture leveling and control

❖ Camera pan-tilt head angle calibration                ❖ Medical equipment attitude measurement

Specifications

Product Dimensions

Shell: 109×77×27mm

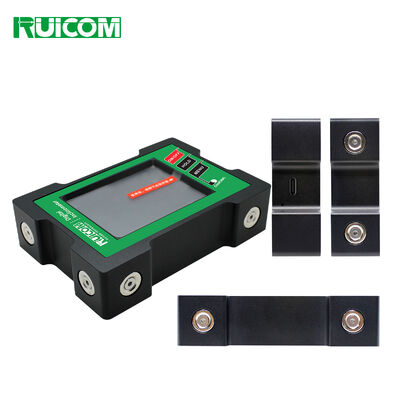

Strong magnetic adsorption installation on the left and bottom sides
