| Brand Name: | RUICOM |
| Model Number: | HTS6 |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 100000 pieces/year |

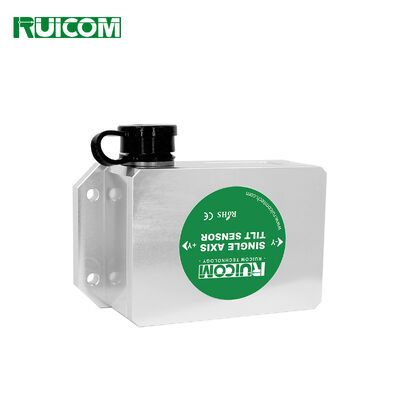

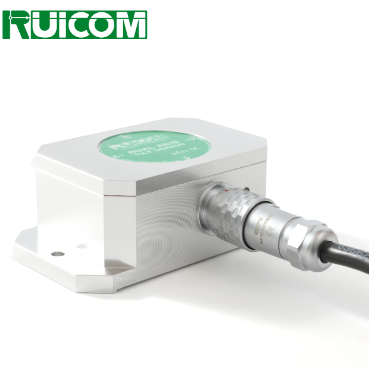

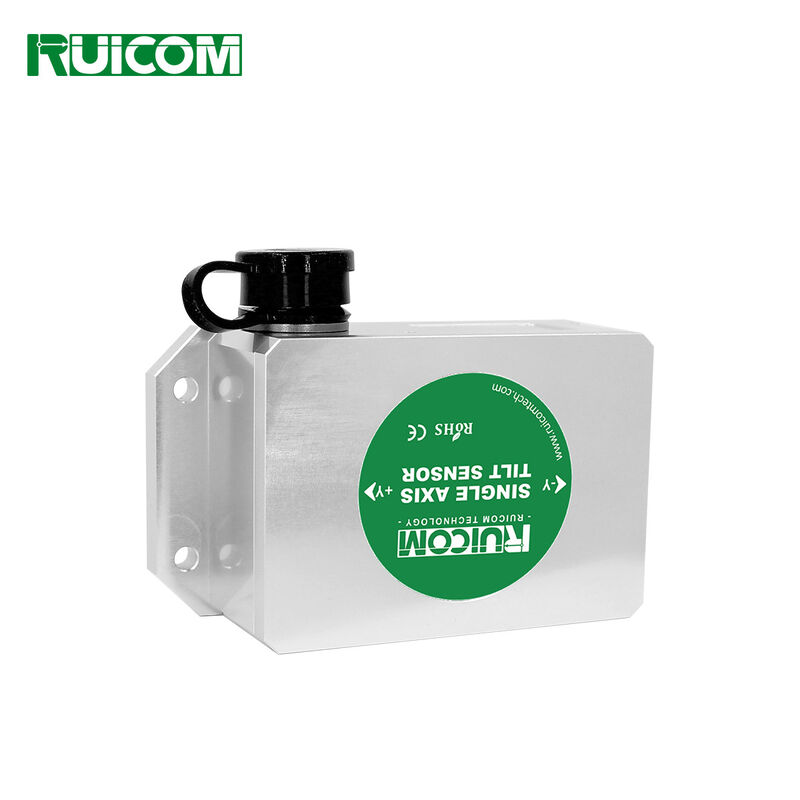

RUICOM Technology's independently developed HTS6-CANopen tilt meter, while maintaining the excellent stability of the STS series, further optimizes measurement accuracy and temperature drift performance, ensuring more precise and reliable attitude detection. This product integrates a high-precision 16-bit A/D differential converter, combined with a fifth-order digital filtering algorithm, to accurately measure the tilt and pitch angles of the sensor relative to the horizontal plane.
The CANopen communication interface supports industrial standard protocols for easy system integration; the built-in high-precision digital temperature sensor supports real-time temperature drift compensation (temperature output optional), ensuring excellent repeatability under wide temperature environments; a 50Hz high response frequency (higher frequencies can be customized) meets dynamic measurement needs; industrial-grade design provides strong anti-interference capabilities, adapting to harsh industrial environments; high reliability and strong scalability make it suitable for high-precision applications such as engineering machinery, automation control, and platform calibration.
RUICOM Technology can provide customized solutions based on customer needs to facilitate precise measurement and intelligent control.
Technical Characteristics
❖ Measuring range selectable from ±1° to ±35°;
❖ Small measuring range accuracy 0.001°;
❖ Resolution 0.001°;
❖ High vibration resistance >2000g;
❖ Wide voltage input DC 9~36V;
❖ CAN Open signal output.
Application Field
❖Industrial automation ❖Engineering machinery platform leveling systems
❖Photovoltaic tracking bracket control systems ❖Aerospace attitude reference systems
❖Precision instrument leveling devices ❖High-precision tilt measurement fields such as platform leveling.
Performance Parameters
|
HTS6 |
Condition |
Parameter |
|
|
Measurement Range |
- |
±10° |
±35° |
|
Measurement Axis |
- |
Single/ Dual-axis |
Single/ Dual-axis |
|
Resolution1) |
- |
0.001° |
0.001° |
|
Measurement Accuracy2) |
@25℃ |
0.005°(RMS) |
0.01°(RMS) |
|
Long-Term Stability |
- |
0.01° |
0.02° |
|
Zero-Point Temp Coefficient3) |
-40~85℃ |
±0.002°/℃ |
±0.002°/℃ |
|
Sensitivity Temp Coefficient4) |
-40~85℃ |
≤50ppm/℃ |
≤50ppm/℃ |
|
Power-On Startup Time |
- |
0.5s |
0.5s |
|
Response Frequency |
- |
20Hz |
20Hz |
|
Output Rate |
5Hz / 15Hz / 35Hz / 50Hz configurable |
||
|
Output Signal |
CANopen |
||
|
EMC |
According to EN61000 and GBT17626 |
||
|
Insulation Resistance |
≥100 MΩ |
||
|
Shock Resistance |
100g@11ms, 3 Axial Direction (Half Sinusoid) |
||
|
Vibration Resistance |
10grms/10~1000Hz |
||
|
Protection Class |
IP67 |
||
|

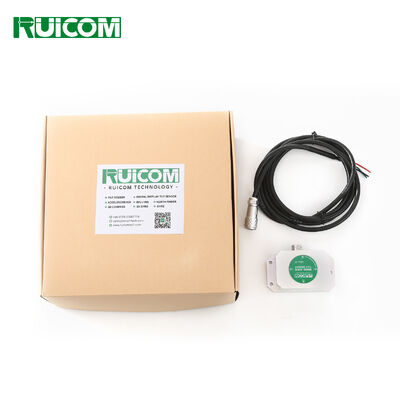

Cables |
Standard 2m cable, wire diameter 6.0mm, wire weight ＜ 155g |
||
|
Weight |
≤200g (excluding cable) |
||
|
1)Resolution: The smallest angular change that can be detected within the effective measurement range, reflecting its ability to monitor minute tilt fluctuations. |
|||
Electrical Parameter
|
Parameter |
Condition |
Minimum Value |
Standard |
Maximum Value |
Unit |
|
|
|
Power Supply voltage |
Standard |
9 |
12 |
24 |
36 |
V |
|
|
Customized |
|
Other voltages |
|
|
|
||
|
Operating current |
No load |
|
50 |
|
mA |
|
|
|
Operating temp |
|
-40 |
|
85 |
℃ |
|
|
|
Storage temp |
|
-40 |
|
85 |
℃ |
|
|
Interface Definition
|
PIN/Thread Color |
Definition |
Description |
|
|
PIN1 / Red |
DC9~36V |
Positive power supply terminal |
|
|
PIN2 / White |
CAN_L |
Transmits low-level signal |
|
|
PIN3 / Green |
CAN_H |
Transmits high-level signal |
|
|
PIN4 / Black |
GND |
Negative power supply terminal |
|
|
PIN5 / ----- |
-- |
-- |
|
Product Dimensions
Case dimensions: L90×W59.1×H34mm
Recommended screws: 3 M4 screws
