| Brand Name: | RUICOM |
| Model Number: | LTS6 |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 100000 pieces/year |

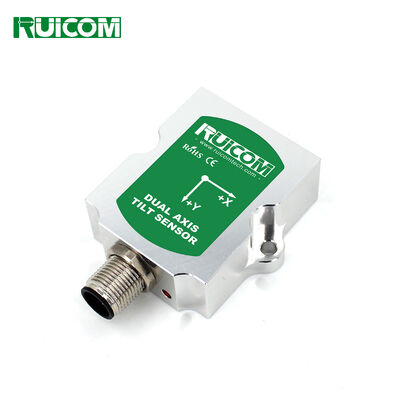

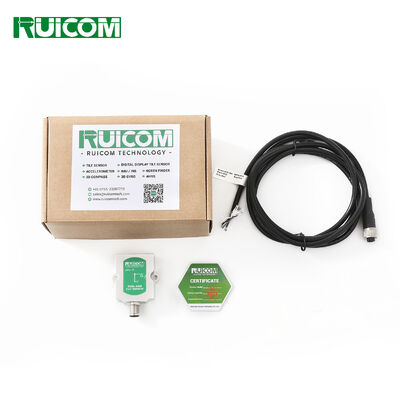

The LTS6 series voltage output tilt angle sensor is a cost-effective full attitude angle measurement product independently developed by RUICOM Technology. This product is designed based on an innovative anti-interference platform, equipped with a new generation MEMS sensing core, with wide temperature range adaptability and excellent anti vibration performance, excellent working stability, and a designed service life of up to 10 years.
This product adopts the principle of non-contact measurement, and uses high-precision capacitive MEMS units to detect gravity components to achieve tilt angle calculation. Easy and flexible installation, directly fixed on the surface of the object being tested, without the need for additional mechanical shaft structures, supporting multi-directional installation methods. Especially suitable for posture monitoring needs in industrial fields such as construction machinery and agricultural equipment.
Technical Characteristics
❖ 0~5V output;
❖ Wide voltage input 9 ~36V;
❖ High vibration resistance >3500g;
❖ Long working life for 10 years.
Application Field
❖ Agricultural machinery and equipment ❖ Construction hoisting equipment
❖ Aerial work platform ❖ Medical equipment leveling
❖ Electric vehicle control system ❖ Woodworking machinery
Performance Parameters
|
LTS6 |
Parameter |
|
Output voltage |
0-5 V |
|
resolution |
0.1° |
|
Measurement accuracy (@25℃) |
±0.2° |
|
Response time |
0.05s |
|
Temp drift characteristics -40℃~+85℃ |
±0.5° |
|
Output load |
> 500 ohms |
|
Insulation resistance |
> 100 megaohms |
|
Vibration resistance |
10 grms 10 ~1000 Hz |
|
Impact resistance |
100g@11 ms , triaxial (half-sine wave) |
|

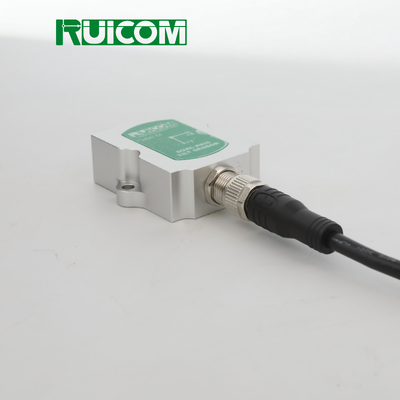

Connector |
M12 * 1.0-5 core male head |
|
wiring |
Standard 2-meter shielded cable |
|
size |
L64.5 ×W50 × H18.5mm |
Interface Definition
|
PIN/Thread Color |
Definition |
Description |
|
PIN1/Brown |
9 ~36V |
Positive terminal of power supply |
|
PIN2/White |
X-axis output |
X-axis 0~5V output |
|
PIN3/Blue |
Y-axis output |
Y-axis 0~5V output |
|
PIN4/Black |
GND |
negative terminal of power supply |
|
PIN 5/Gray |
zero clearing |
-- |
Product Dimensions
Shell Size: L64.5×W50×H18.5mm
Recommended screws: 2 M4 screws
