| Brand Name: | RUICOM |
| Model Number: | LTS6 |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 100000 pieces/year |
Upper Computer Software Operation Video:

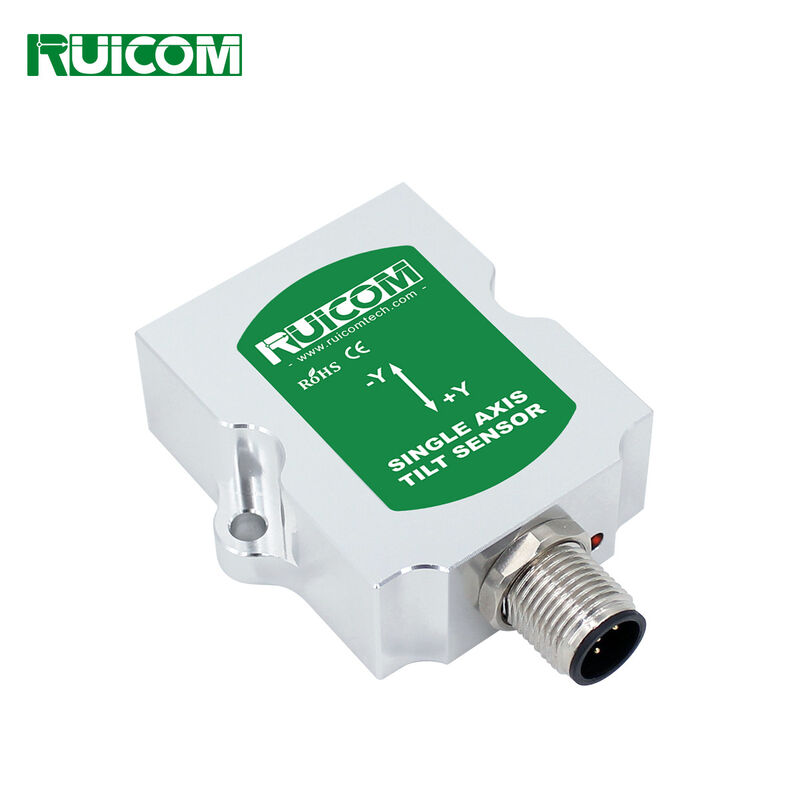

The LTS 6 digital output series tilt sensor is a high-performance, cost-effective all-attitude angle measurement device developed based on independent core technologies . This product utilizes an innovative anti-interference structural platform. Integrating next-generation MEMS sensing elements It features wide operating temperature range,excellent resistance to mechanical vibration, and long-term operational stability. It is designed to have a service life of up to 10 years.This product is based on the principle of non-contact measurement. It detects the Earth's gravity vector component through a built-in high-precision capacitive MEMS sensor unit,and calculates and outputs the tilt angle in real time using a dedicated algorithm.
Its installation is flexible and convenient; it can be directly fixed to the surface of the object being measured without the need for additional mechanical shafts or fixing systems.Supports multiple installation options It can fully meet the measurement needs of different industrial scenarios, and is particularly suitable for attitude monitoring applications in industrial fields such as engineering machinery and agricultural equipment.
Technical Characteristics
❖ Six installation methods ;
❖ Zero point can be set on-site ;
❖ Output method: RS232/RS485/TTL;
❖ High vibration resistance >2000g.
Application Field
❖ Agricultural machinery and equipment ❖ Construction hoisting equipment
❖ Aerial work platform ❖ Medical equipment leveling
❖ Electric vehicle control system ❖ Woodworking machinery
Performance Parameters
|
LTS6 |
Condition |
Parameter |
Unit |
|
Resolution |
- |
0.1 |
° |
|
Measurement accuracy |
(@ 25℃) |
±0.2 |
° |
|
response time |
- |
0.05 |
s |
|
Temp drift characteristics |
-40℃~85℃ |
±0.5 |
° |
|
Output load |
- |
>500 megaohms |
- |
|
Insulation resistance |
- |
>100 megohms |
- |
|
Anti-vibration |
10grms 10~1000 Hz |
||
|
Impact resistance |
100g@ 11 ms , triaxial ( half-sine wave ) |
||
|

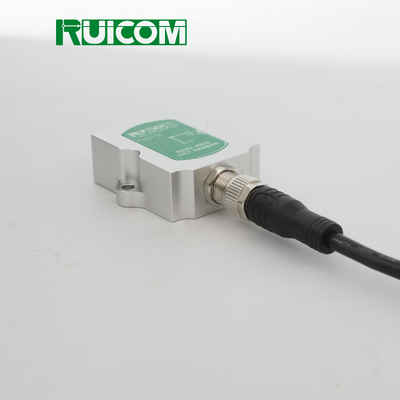

Connector |
M12 * 1.0-5 core male head |
||
|
Cable |
Standard 2-meter shielded wire |
||
|
Shell size |
L64.5×W50×H18.5mm |
||
|
Shell material |
Anodized aluminum |
||
|
Weight |
≤200g |
||
Interface Definition
|
PIN/Thread Color |
Definition |
Description |
|
|
PIN1/Brown |
9 ~36V |
Positive power terminal |
|
|
PIN2/White |
RS232_RXD/RS485_D+ |
Receive data |
|
|
PIN3/Blue |
RS232_TXD/RS485_D- |
Send data |
|
|
PIN4/Black |
GND |
negative terminal of power supply |
|
|
PIN5/Grey |
NC |
NC |
|
Product Dimensions
Shell Size: L64.5×W50×H18.5mm
Recommended screws: 2 M4 screws
