| Brand Name: | RUICOM |
| Model Number: | VTS6D |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 100000 pieces/year |
Upper Computer Software Video:

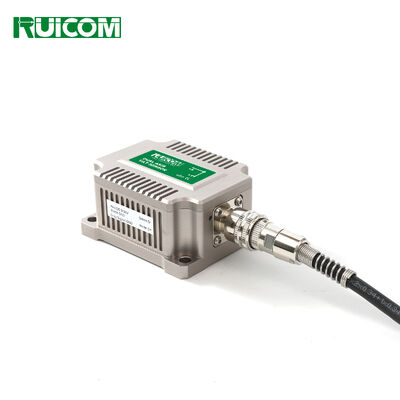

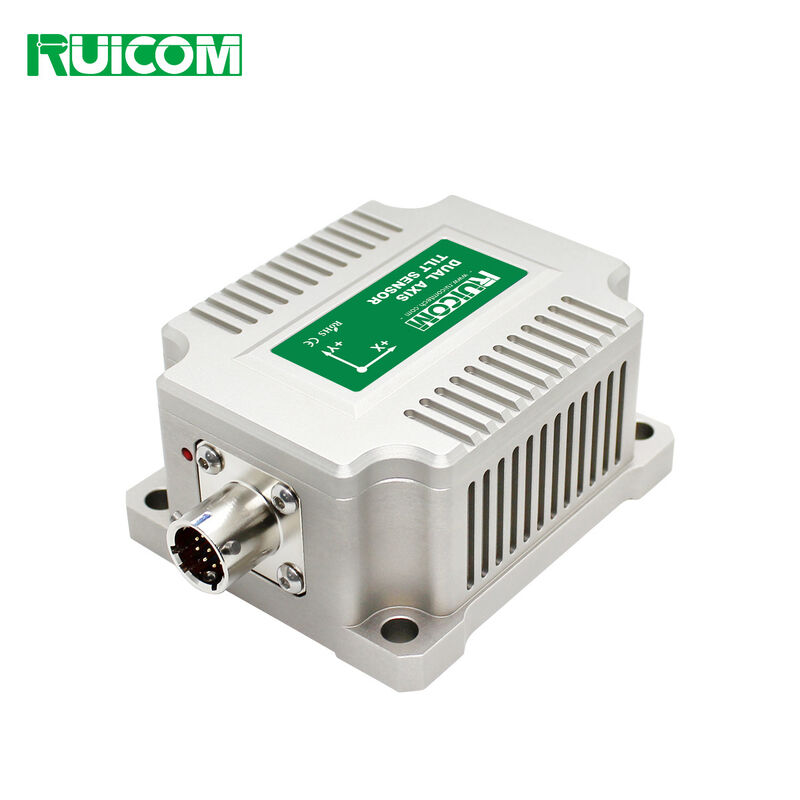

The VTS is a high-precision industrial-grade sensor developed by RUICOM Technology specifically for the field of vibration and tilt angle measurement. All products undergo rigorous full-temperature-range calibration compensation and stability testing over a certain period before leaving the factory, ensuring exceptional measurement performance under various environmental condition. Equipped with an inbuilt Fast Fourier Transform (FFT) algorithm, it can accurately detect mechanical vibrations within the 0.5~20Hz range, enabling precise calculation of the peak velocity and maximum displacement amplitude of vibrating bodies through frequency analysis.
The device supports multiple communication protocols, including the industrial-standard MODBUS protocol, and is equipped with professional data analysis software, enabling real-time monitoring, recording, and in-depth analysis of measurement data. It offers various interface configuration options such as RS485/RS422/RS232 to meet diverse industrial application needs. Featuring a non-contact installation design, the sensor can be securely mounted on the target surface with just screws, automatically performing horizontal tilt angle calculations to significantly enhance deployment efficiency.
With excellent electromagnetic interference resistance and outstanding mechanical shockproof performance, the VTS series has been successfully applied to high-end mobile platforms such as satellite communication vehicles, special command vehicles, and radar antenna vehicles, providing reliable solutions for attitude measurement in complex environments.
Technical Characteristics
❖ Dual axis inclination measurement ❖ Range ±10°
❖ Accuracy: 0.001° ❖ Horizontal/vertical optional
❖ Resolution: 0.0005° ❖ Aviation plug connector
Application Field
❖ Wind power monitoring ❖ Bridge and Dam monitoring
❖ High speed railway track monitoring ❖ Railway gauge ruler and gauge leveling
❖ Satellite communication vehicle ❖ Geological equipment tilt monitoring
Performance Parameters
|
VTS6D |
Parameter |
|
Measure range |
±10° |
|
Measure axis |
XY |
|
Resolution 1) |
0.0005° |
|
Measure accuracy 2) |
0.001° |
|
Zero temp coefficient 3) |
0.0003°/℃ |
|
Sensitivity temp. coefficient 4) |
≤50ppm/℃ |
|
Power on time |
<0.5S |
|
Response frequency |
20Hz |
|
Output rate |
5Hz / 10Hz / 25Hz / 35Hz / 50Hz / 100Hz Can be set |
|
Output signal |
RS485/RS232/RS422 Optional |
|
EMC |
According to EN61000 and GBT17626 |
|
MTBF |
≥98000 hour/time |
|
Insulation Resistance |
≥100 MΩ |
|
Shockproof |
100g@11ms / 3 Axial Direction (Half Sinusoid) |
|
Anti-vibration |
10grms / 10~1000Hz |
|
Protection grade |
IP67 |
|
Cables |
Standard configuration: 2-meter cable/weight ≤ 194g |
|
Weight |
≤425g (Excluding cable) |
|
1) Resolution: refers to the minimum angle change that a sensor can recognize within its effective range, reflecting its ability to monitor small tilt angle fluctuations. |
|
Electrical Parameters
|
Parameter |
Condition |
Minimum Value |
Standard |
Maximum Value |
Unit |
|
|
Power Supply voltage |
Standard |
9 |
12 |
24 |
36 |
V |
|
Operating current |
12V |
|
16 |
|
mA |
|
|
24V |
|
11 |
|
mA |
||
|
Operating temp |
|
-40 |
|
+85 |
℃ |
|
|
Storage temp |
|
-40 |
|
+85 |
℃ |
|
Interface Definition
RS232/RS485 Pin color definition
|
PIN/Thread Color |
Definition |
Description |
|
PIN1 / Red |
DC9~36V |
Positive power terminal |
|
PIN2 / Black |
GND |
Negative terminal of power supply |
|
PIN3 / White |
RS232_RXD / RS485_D+ |
|
|
PIN4 / Green |
RS232_TXD / RS485_D- |
|
|
PIN5 / Grey |
Signal Ground |
Signal ground |
|
PIN6 / -- |
- |
Internal use in the factory |
|
PIN7 / -- |
- |
Internal use in the factory |
RS422 Pin color definition
|
PIN/Thread Color |
Definition |
Description |
|
PIN1 / Red |
DC9~36V |
Positive power terminal |
|
PIN2 / Black |
GND |
Negative terminal of power supply |
|
PIN3 / Orange |
RS422_RXD+ |
|
|
PIN4 / Yellow |
RS422_RXD- |
|
|
PIN5 / Blue |
RS422_TXD+ |
|
|
PIN6 / White |
RS422_TXD- |
|
|
PIN7 / Grey |
Signal Ground |
Signal ground |
|
PIN8 / -- |
- |
Internal use in the factory |
|
PIN9 / -- |
- |
Internal use in the factory |
Product Dimensions
Case dimensions: L95×W70×H42mm
Recommended screws: 4 M6 screws
