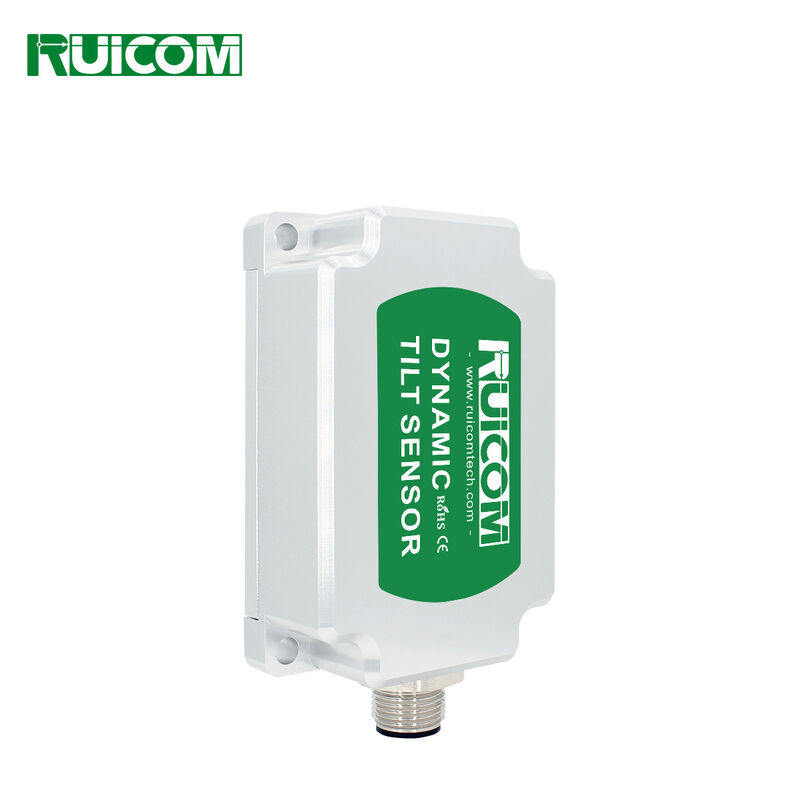

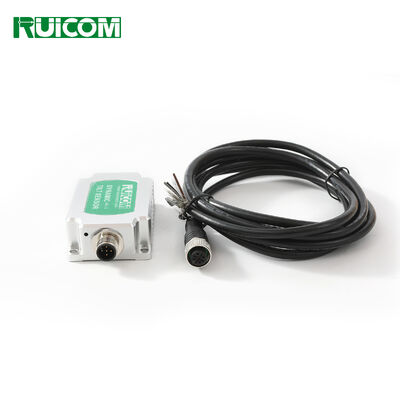

DTS6 Digital Output Dynamic Inclinometer Tilt Sensor High Shock Resistant

DTS6 Digital Output Dynamic Inclinometer Tilt Sensor High Shock Resistant

Brand Name: RUICOM
Model Number: DTS
MOQ: 1
Payment Terms: T/T
Supply Ability: 100000 pieces/year
Detail Information
Place of Origin:
Shenzhen, China
Certification:
CE, RoHS
Application:
Shipboard / Construction Excavator / Construction Piling / In-vehicle / Mine Truck Inclination / Tower Crane / Wind Turbine Power Generation
Signal Output:
RS232 / RS485 / UART TTL
Communication Protocol:
Binary Protocol / MODBUS Protocol
Package:
PCBA Board / Standard Casing / IP68 / Anti-corrosion Shell
Installation Direction:
Horizontal / Horizontal Downwards / Vertical / Vertical Leftwards / Vertical Rightwards
Supply Ability:
100000 pieces/year
Highlight:

Digital Output Dynamic Inclinometer

,

DTS6 Inclinometer Tilt Sensor

,

High Shock Resistant Dynamic Inclinometer

Product Description

Upper Computer Software Video:



DTS6 is a high-performance digital MEMS dynamic tilt sensor independently developed by RUICOM Technology. Designed specifically for attitude monitoring of moving vehicles, it can accurately measure three-dimensional attitude parameters such as roll, pitch, and yaw angles, and is particularly suitable for tilt detection under vibration or motion conditions.

This sensor employs a multi-axis MEMS inertial measurement unit (IMU), integrating a three-axis accelerometer and gyroscope, and incorporates an adaptive Kalman filter algorithm to ensure real-time output of high-precision attitude data even in dynamic environments. It supports multiple digital interfaces including RS485, RS232, and TTL, offering strong compatibility and facilitating system integration.

Based on a non-contact measurement principle, the product can achieve real-time attitude calculation without relying on a reference mounting surface. Its built-in high-precision analog-to-digital converter (ADC) and gyroscope compensation unit automatically correct for nonlinear errors, orthogonal coupling, temperature drift, and centrifugal acceleration effects, effectively suppressing measurement deviations caused by motion interference and significantly improving dynamic measurement accuracy, making it suitable for long-term harsh operating conditions.

As a dynamic/static dual-mode sensor, DTS has excellent electromagnetic interference (EMI) immunity and can withstand high-intensity mechanical shock and vibration. It is widely used in attitude measurement and control in harsh environments such as industrial automation, engineering machinery, and rail transportation, making it an ideal solution for industrial-grade high-reliability attitude sensing.


Technical Characteristics

❖ Dynamic accuracy ±0.1°;

❖ Static accuracy ±0.05°;

❖ RS485/232/TTL optional;

❖ Measuring range (R±180°, P±90°, Y±180°).

❖ Three Protection Classes Available


Application Field

★Strong impact vibration crushing equipment ★Engineering vehicle equipment measurement and control

★Construction equipment leveling                  ★Agricultural machinery measurement and control

★aircraft attitude control                               ★Ship attitude monitoring

DTS6 Digital Output Dynamic Inclinometer Tilt Sensor High Shock Resistant

Performance Parameters

DTS6

Parameter

Measurement Range

Roll ±180°, Pitch ±90°, Azimuth ±180°

(Initial value after power failure is 0°)

Measurement Axis

X-axis / Y-axis / Z-axis

Roll and Pitch Resolution1)

0.01°

Roll and Pitch Static Accuracy @25℃

±0.05°

Roll and Pitch Dynamic Accuracy (rms) @25℃

±0.1°

gyroscope

Gyroscope Range

±300°/s

Oblique Stability (10s Mean)

8.5°/h

Oblique Instability (allan)

4.5°/h

Angle Random Walk Coefficient (allan)

0.25°/sqrt(h)

acceleration

Acceleration Range

±4g / ±16g (optional)

Oblique Stability (10s Mean)

0.02mg

Oblique Instability (allan)

0.005mg

Velocity Random Walk Coefficient (allan)

0.005m/s/sqrt(h)

Zero-point temp coefficient3)@-40~85℃

±0.01°/℃

Sensitivity temp coefficient4)@-40~85℃

≤100ppm/℃

Power-on startup time

≤3.5S

Response time

0.01S

Communication protocol

RS485/RS232/TTL optional

Electromagnetic compatibility

According to EN61000 and GBT17626

Mean time between failures (MTBF)

≥98000hours/time

Insulation resistance

≥100megaohm

Shock resistance

100g@11ms, triaxial (half-sine wave)

Vibration resistance

10grms / 10~1000Hz

Protection class

IP67 / IP68 / Anti-corrosion (optional)

Connector/cable

M12-5-pin aviation plug connector / 2-meter black PVC shielded cable

Weight

Single connector ≤176g / Dual connector ≤182g (excluding cable)

1) Resolution: The smallest angular change that the sensor can detect within its effective range, reflecting its ability to monitor minute tilt fluctuations.
2) Accuracy: Calculated by performing multiple repeated measurements (sample size ≥ 16) at a fixed angle under standard ambient temperature (25±5℃), representing the root mean square (RMS) error between the measured and true values, characterizing the sensor's overall measurement deviation.
3) Zero-point temperature coefficient: The ratio of the sensor's output value to temperature change under zero-input conditions, defined as the ratio of the zero-point offset within the rated operating temperature range to the room temperature reference value.
4) Sensitivity temperature coefficient: The stability index of the sensor's full-scale output value with temperature changes, characterizing the drift rate of sensitivity relative to the room temperature reference value within the rated temperature range.

Electrical Parameters

Parameter

Condition

MINI

TYP

MAX

Unit

Power supply voltage

Standard

9

12

24

36

V

Operating current

No load



40mA(12V)



mA

Operating temp



-40



85

℃

Storage temp



-40



85

℃

Interface Definition

PIN/Thread Color

Definition

Description


PIN1 / Brown

9~36V

Power supply positive terminal


PIN2 / White

RS232_RXD/TTL_RXD/485_D+

Signal output


PIN3 / Blue

RS232_TXD/TTL_TXD/485_D-

Signal output


PIN4 / Black

GND

Power supply negative terminal


PIN5 / Gray

PE

Protective ground



Connector pin definition diagram                                                                                     PCBA board wiring definition diagram       DTS6 Digital Output Dynamic Inclinometer Tilt Sensor High Shock Resistant                                                          DTS6 Digital Output Dynamic Inclinometer Tilt Sensor High Shock Resistant


Product Dimensions

PCBA Dimension Diagram

PCBA size: L39×W37×H12.2mm

Installation size: L35×W28mm

Suggested screw: 4 M2 screws

DTS6 Digital Output Dynamic Inclinometer Tilt Sensor High Shock Resistant



Single-head (male) connector housing dimension drawing

Shell Size: L83×W47×H22.5mm

Installation Size: L64×W39×H6.5mm

Shell material: aluminum alloy

Suggested screws: 4 M4 screws

DTS6 Digital Output Dynamic Inclinometer Tilt Sensor High Shock Resistant


Corrosion-resistant shell size diagram

Shell Size: L95.3×W56×H24.5mm
Installation Size: L64×W39×H6.5mm

Shell material: 304 stainless steel

Suggested screws: 4 M4 screws

DTS6 Digital Output Dynamic Inclinometer Tilt Sensor High Shock Resistant
