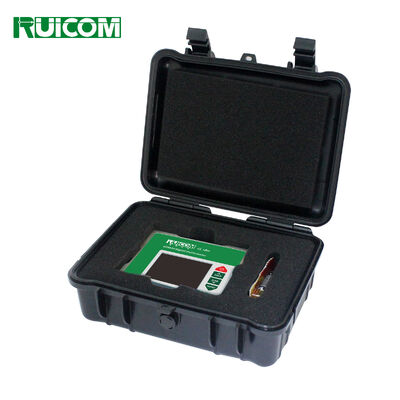

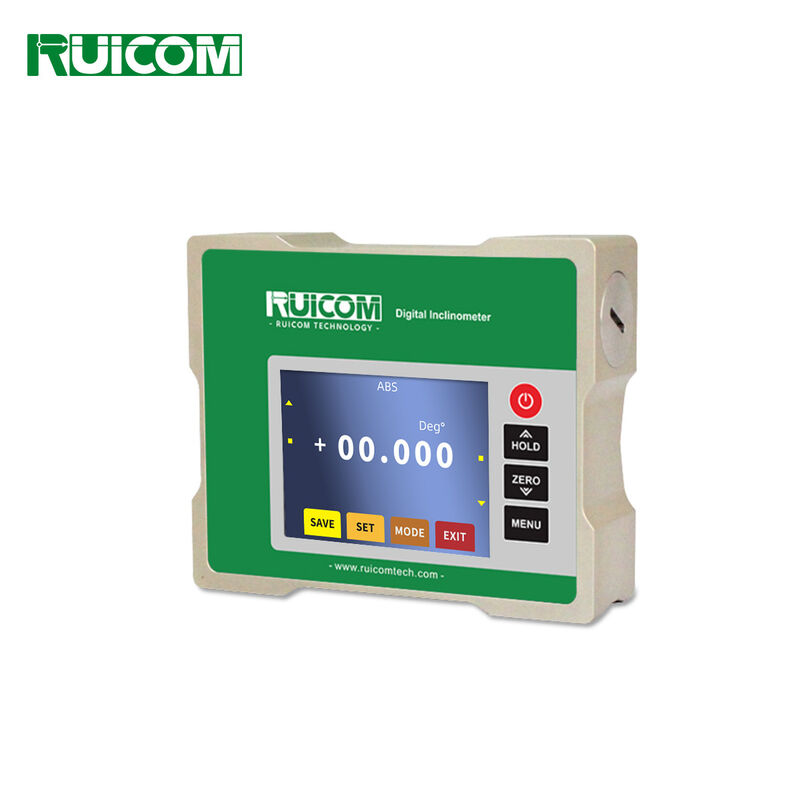

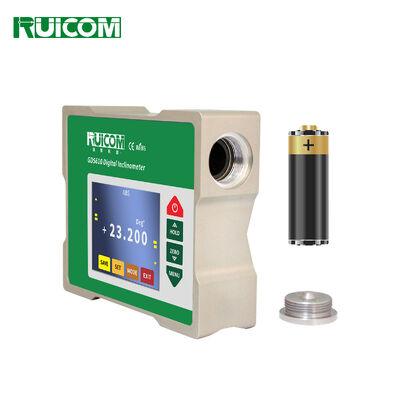

GDS610 Automatic Switch Single / Dual Axis Inclinometer Digital

The GDS610 is a high-precision industrial-grade digital tilt measuring instrument designed specifically for angle monitoring and control applications in industrial settings. It is utilizing advanced MEMS sensing technology, combined with a unique cross-axis compensation algorithm and temperature drift correction model, it fully leverages the computational power of MEMS to ensure excellent long-term stability and repeatability of measurement data.

The device boasts a single-axis measurement range of ±90°, a high resolution of 0.001°, rapid response, and stable output. Its innovative three-dimensional magnetic mounting design (including strong magnetic adsorption structures on the sides and bottom) enables multi-reference surface measurement, significantly enhancing on-site installation flexibility. The GDS610 series integrates a data storage module, supports switching between three measurement units (degrees, minutes, seconds/decimal angles/mm per meter), and combines excellent system scalability, ease of operation, and reliability in industrial environments, maintaining strong competitiveness in the international market with its outstanding cost-performance ratio.

Technical Characteristics

❖ Optimal accuracy: <0.02°;

❖ Repeatability: 0.004°;

❖ Angular resolution: 0.001°;

❖ Data storage function;

❖ Three-plane reference strong magnetic mounting;

❖ Automatic angle interpolation compensation function.

Application Field

❖ Architectural engineering surveying               ❖ Roadbed and pavement slope monitoring

❖ Vehicle positioning and suspension leveling    ❖ Industrial equipment level control

❖ Heavy equipment leveling and calibration       ❖ Rotary platform accuracy testing

❖ Precision machining fixture positioning           ❖ Medical equipment posture correction

Specifications

Product Dimensions

Housing:115×95×32mm
