| Brand Name: | RUICOM |
| Model Number: | GDS850 |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 100000 pieces/year |

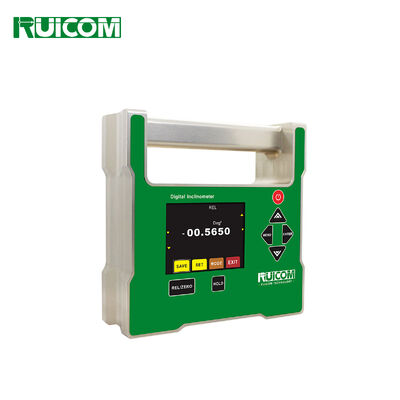

The GDS850 is a level gauge developed by RUICOM Technology based on a high-precision tilt measurement platform. It uses a built-in MEMS sensor to sense the Earth's gravitational field, thereby obtaining the horizontal tilt angle of an object. Its built-in 32-bit microprocessor can perform high-resolution sampling of the weak current and tilt angle ratio signals from the front end, achieving an accuracy of 0.002° and a resolution of 0.0005°. The device supports on-site data saving and playback, is suitable for leveling and measuring on high-precision platforms, and features good scalability, ease of operation, industrial-grade reliability, and a competitive price-performance ratio, making it competitive in the international market.
Technical Characteristics
❖ Measurement range: ±30°;
❖ Optimal accuracy: <0.002°;
❖ Angular resolution: 0.0005°;
❖Capable of recording key measurement data;
❖ Customers can calibrate the zero point themselves;
❖ Dual strong magnetic measuring surfaces on the bottom left.
Application Field
❖ Architectural surveying ❖ Vehicle alignment and four-wheel calibration
❖ Road and slope gradient detection ❖ Medical equipment attitude measurement
❖ Tooling and fixture leveling and control ❖ Camera pan-tilt head angle calibration
❖ Mechanical equipment installation and leveling ❖ Pipeline laying and angle control
Specifications
|
GDS850 |
Parameter |
Unit |
|
Angle Measurement Range |
±30 |
° |
|
Measuring Axis |
Single axis |
|
|
Maximum Measurement Accuracy |
<0.002 (＜5°) <0.003 (5°-30°) |
°(RMS) |
|
Angle Measurement Resolution |
0.0005 |
° |
|
Measurement Mode |
degrees, millimeters/meters Two modes can be set |
/ |
|
LCD |
64-color true-color luminous display screen |
/ |
|
LCD Viewable Area Size |
L60*W45 |
mm |
|
Operating Temperature |
-10°~ +70℃ |
°/℃ |
|
Operating Humidity |
85 |
%RH |
|
Power Supply |
2A AA batteries |
/ |
|
Battery Continuous Working Time |
6 |
h |
|
Vibration Resistance |
10g@11ms, triaxial (half-sine wave) |
g |
|
Shock Resistance |
10grms / 10~100Hz |
g |
|
Weight |
1200g |
g |
|
Waterproof Rating |
IP54 |
/ |
|
Material |
Anodized aluminum alloy |
/ |
|
Dimensions |
L140*W140*H45mm |
mm |

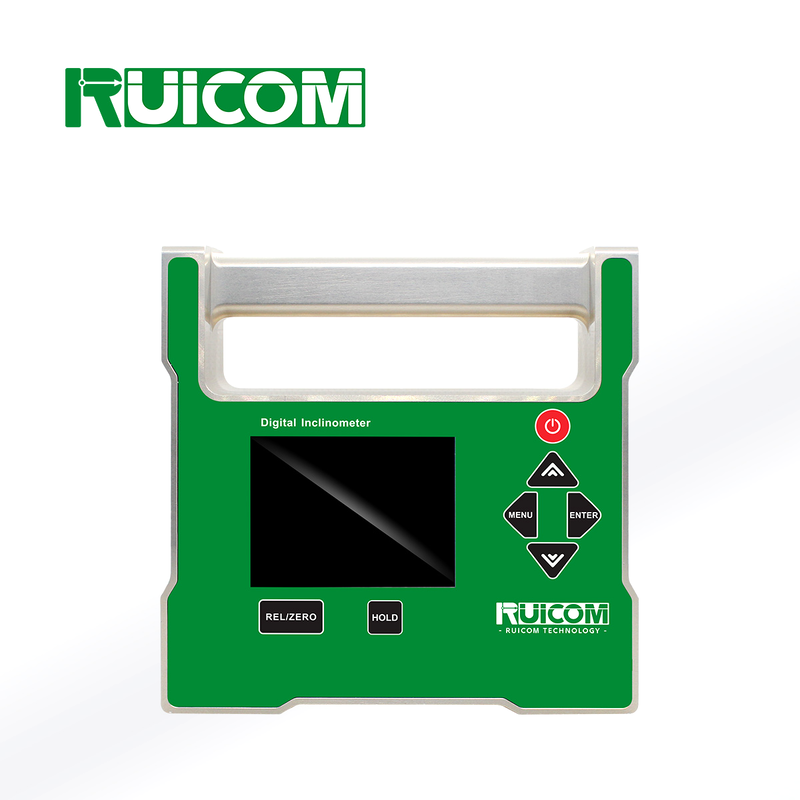

Product Dimensions
Housing: 140×140×45mm
