| Brand Name: | RUICOM |
| Model Number: | GKC370 |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 100000 pieces/year |

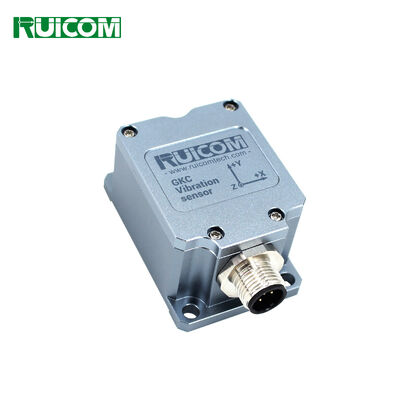

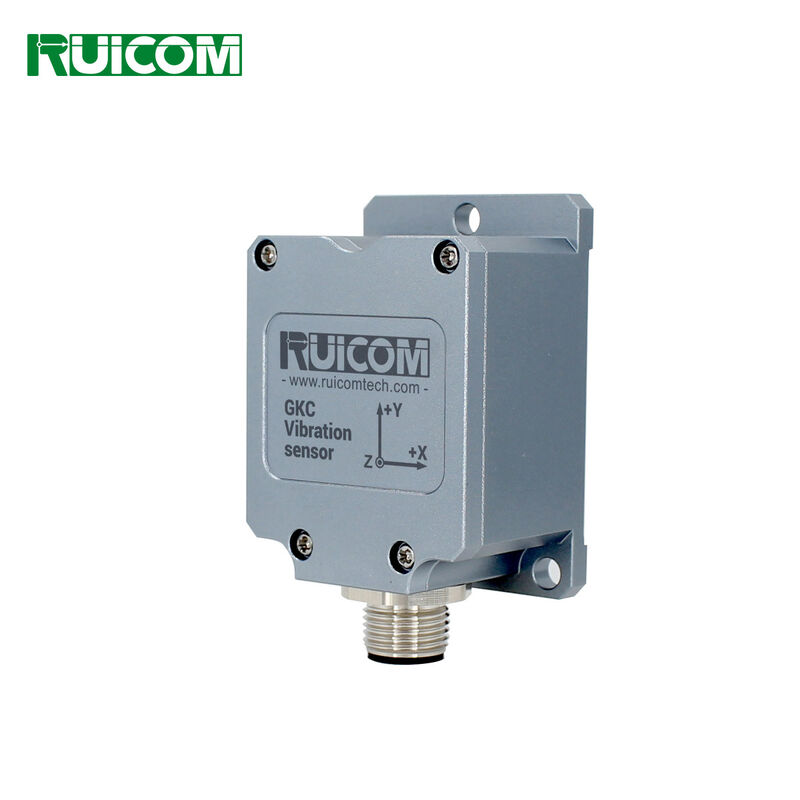

The GKC370 vibration sensor is based on the principle of single crystal silicon MEMS capacitive sensing, providing analog voltage output signals with an output range of 0.5 V to 4.5 V. Its built-in compensation circuit can effectively reduce the impact of temperature and process deviations on measurement accuracy, thereby achieving good linearity and long-term stability.
This product has the following technical features:
- Integrated electromagnetic compatibility (EMC) and radio frequency interference (RFI) shielding design;
- Low power operation mode;
- Support multi range configuration of ± 2g, ± 4g, ± 8g, ± 16g (optional);
- DC coupling output interface;
- Frequency response range: 0 Hz to 200 Hz;
- Built in self checking function, supporting real-time monitoring of operating status.
Based on the above performance indicators, GKC370 is suitable for industrial vibration measurement, equipment status monitoring, and general motion detection applications.
Technical Characteristics
❖ Triaxial MEMS Vibration sensor;
❖ 0.5-4.5V output;
❖ Measurement range ±2g~±16g;
❖ Self-test function;
❖ IP67 protection rating.
Application Field
❖ Bridge impact monitoring ❖ Machine control
❖ Structural monitoring ❖ Low-frequency vibration monitoring
Performance Parameters
|
GKC370 |
Parameter |
|
|
Measurement Range |
±2g~±16g |
|
|
Measuring Axis |
X,Y,Z Axis |
|
|
Resolution |
<1mg |
|
|
Zero-Point Acceleration |
2.5V (Voltage Output) |
|
|
Full-Range Output |
0.5-45V (Voltage Output) |
|
|
Linearity |
1% |
|
|
Power-On/Power-Off Repeatability |
<2mg |
|
|
Response Frequency |
0 - 200Hz Integrated low-pass filter |
|
|
Bandwidth |
200Hz @ 3Db |
|
|
Shock |
>100g@11ms (half sine wave) |
|
|
Shock Recovery Time |
<1 ms |
|
|
Operating Temperature Range |
-40~+85℃ |
|
|
Storage Temperature Range |
-40~+85℃ |
|
|
Supply Voltage |
9-36V DC |
|
|
Maximum Power Consumption |
35-38mA @12V DC |
|
|
Noise Density |
<25µg/√ Hz @ ±2g |
<60µg/√ Hz @ ±16g |
|
Maximum Calibration Uncertainty |
<1mg |
|
|
Electrical Protection |
EMC and RFI shielding |
|
|
Reliability |
MIL-HDBK-217 Level 2 |
|
|
Self-Test |
±1g @ 10Hz ST line grounding |
|
|
Protection Class |
IP67 |
|
|
Product Dimensions |
L55×W37×H29mm |
|
|
Product Weight |
≤100g(excluding cable) |
|
PIN Definition
|
PIN/Thread Color |
Definition |
|
PIN1/Brown |
DC9 ~36V |
|
PIN2/White |
X-axis voltage signal |
|
PIN3/Blue |
Y-axis voltage signal |
|
PIN4/Black |
GND |
|
PIN 5/Grey |
Z-axis voltage signal |
Product Dimensions
Shell size: L55×W37×H29mm
Installation size: L48×W28.6×H4mm
Mounting screws: 3 M4 screws
Shell material: aluminum alloy
