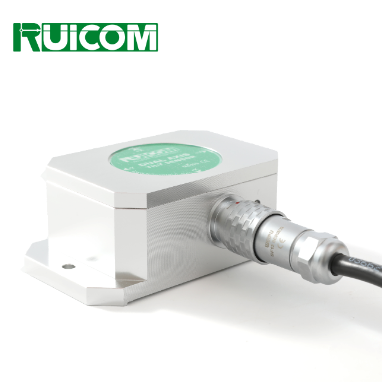

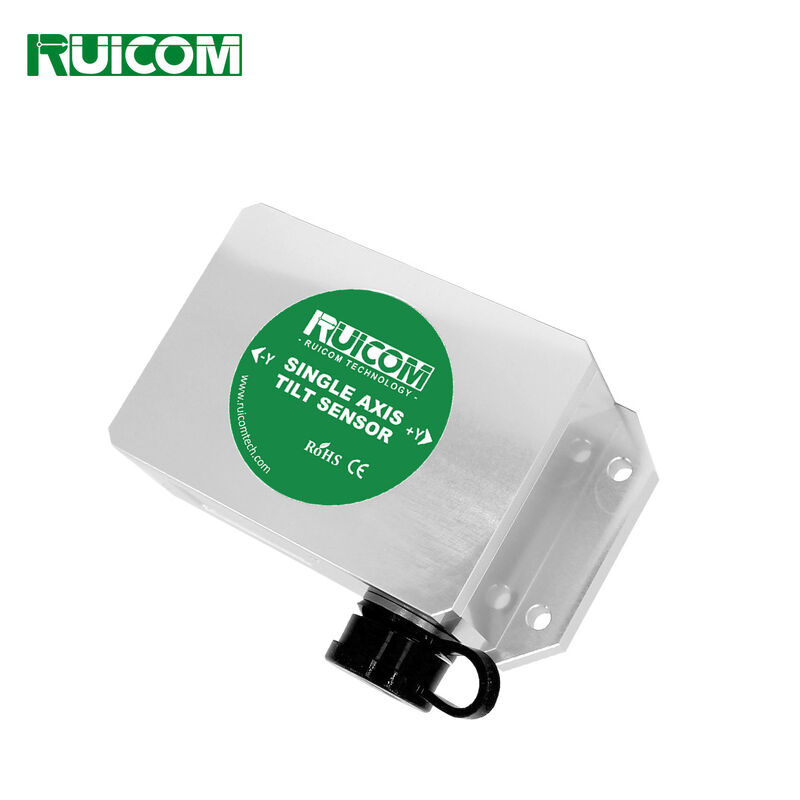

The HTS6 series is a high-precision single/dual-axis tilt sensor, employing a 4-20mA standard industrial current signal output and supporting long-distance signal transmission up to 2000 meters. Based on advanced MEMS manufacturing processes, this product utilizes precise temperature compensation and nonlinear correction technology to achieve a measurement accuracy of 0.005° within a small range (see product specifications for large range parameters).
This series of tilt sensors innovatively applies dynamic zero-point calibration technology, enabling rapid start-up. It features high resolution, excellent data stability, and strong resistance to mechanical shock and vibration. The product employs an anti-RF interference design and electromagnetic shielding circuitry, significantly improving the anti-interference performance of the output signal. Compared to similar products, it not only boasts superior performance parameters but also ensures long-term stable and reliable operation under harsh conditions through the use of high-quality components and protective designs, including an industrial-grade MCU, a ruggedized circuit board, imported connecting cables, and a wide-temperature-range metal shielded housing.
Technical Characteristics
❖ Measuring range ±1~±90° selectable;
❖ Small measuring range accuracy 0.005°;
❖ Resolution 0.001°;
❖ Output mode 4~20mA;
❖ Wide voltage input 11.5~36V;
❖ Wide operating temperature -40~+85℃.
Application Field
❖ Engineering machinery platform leveling systems ❖ Photovoltaic tracking bracket control systems
❖ Aerospace attitude reference systems ❖ Precision instrument leveling devices
Performance Parameters
|
HTS6 |
Condition |
Parameter |
||||
|
Measurement Range |
- |
±10° |
±30° |
±60° |
±90° |
|
|
Measurement Axis |
- |
X / XY Axis |
||||
|
Zero Output |
- |
12mA |
||||
|
Resolution1) |
- |
0.001° |
||||
|
Accuracy |
Maximum Absolute Error (MAE)2) |
Room Temp |
0.005° |
0.01° |
0.02° |
0.03° |
|
Root Mean Square Error(RMSE)3) |
Room Temp |
0.003° |
0.003° |
0.005° |
0.008° |
|
|
Zero Temp Coefficient4) |
-40~85℃ |
0.0005°/℃ |
||||
|
Sensitivity Temp Coefficient5) |
-40~85℃ |
≤100ppm/℃ |
||||
|
Power-On Startup Time |
0.5S |
|||||
|
Response Frequency |
20Hz |
|||||
|
Electromagnetic Compatibility |
According to EN61000 and GBT17626 |
|||||
|
Insulation Resistance |
≥100MΩ |
|||||
|
Shock Resistance |
100g@11ms, 3 Axial Direction (Half Sinusoid) |
|||||
|
Vibration Resistance |
10grms, 10~1000Hz |
|||||
|
Protection Class |
IP67 |
|||||
|
Cables |
Standard 2m cable, wire diameter 6.8mm, wire weight＜155g |
|||||
|
Weight |
≤270g (excluding cable) |
|||||
|
1) Resolution: The smallest identifiable angular change within the effective measurement range, reflecting its ability to monitor minute tilt fluctuations. |
||||||
Electrical Parameters
Interface Definition
|
PIN/Thread Color |
Definition |
Description |
|
PIN1 / Red |
DC11.5~36V |
Power supply positive terminal |
|
PIN2 / White |
X_OUT |
X-axis current output |
|
PIN3 / Green |
Y_OUT |
Y-axis current output |
|
PIN4 / Black |
GND |
Power supply negative terminal |
|
PIN5 / Gray |
signal ground |
Signal ground |
|
PIN6 / ---- |
NC |
No connection |
|
PIN7 / ---- |
NC |
No connection |
* Signal ground: The ground of the circuit that collects and measures the current output signal of the sensor.
Product Dimensions
Case dimensions: L90×W61.6×H34mm
Recommended screws: 3 M4 screws
