Analog Inclinometer
>

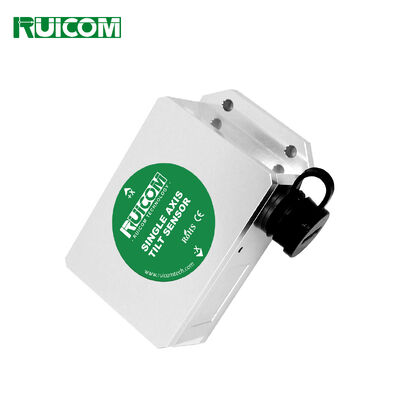

HTS6 Analog Inclinometer Tilt Sensor Single Axis / Dual Axis 0~10V Voltage Output

HTS6 Analog Inclinometer Tilt Sensor Single Axis / Dual Axis 0~10V Voltage Output

Brand Name: RUICOM
Model Number: HTS6
MOQ: 1
Payment Terms: T/T
Supply Ability: 100000 pieces/year
Detail Information
Place of Origin:
Shenzhen, China
Certification:
CE, RoHS
Voltage Output:
0~5V / 0.5~4.5V / 0~10V
Installation Direction:
Horizontal / Horizontal Downwards / Vertical / Vertical Leftwards / Vertical Rightwards
Measurement Axis:
X / Y / D
Measurement Range:
±10° / ±15° / ±30° / ±45° / ±60° / ±90°
Supply Ability:
100000 pieces/year
Highlight:

HTS6 Analog Inclinometer

,

Single Axis Inclinometer Tilt Sensor

,

10V Analog Inclinometer

Product Description

The HTS6 series analog voltage inclinometer supports single-axis and dual-axis tilt measurement, offering industrial high precision up to 0.005° for small-range applications.
It operates on the gravity vector decomposition principle. A miniature solid pendulum structure captures static gravity variations, and high-precision sensing elements convert tilt displacement into standard 0–5V voltage output.

Integrated with a 24-bit DAC and embedded MCU for real-time signal processing, the sensor features automatic temperature compensation and nonlinearity correction. It greatly suppresses accuracy drift induced by temperature fluctuation and delivers factory-linearized calibrated signals, eliminating the need for secondary calibration on site.

Adopting a non-contact measurement scheme, it does not require reference surface alignment during installation. Manufactured with mature MEMS technology, the compact sensor is easy to mount and provides superior EMC resistance, well suited for industrial attitude monitoring and control.


Technical Characteristics

❖ Measuring Range: ±1° to ±90° (selectable)
❖ Accuracy: 0.005°
❖ Resolution: 0.001°
❖ Output: 0~5V
❖ Supply Voltage: 11.5~36V DC
❖ Temp Range: -40℃ ~ +85℃


Application Field

❖ Engineering machinery platform leveling systems     ❖ Photovoltaic tracking bracket control systems

❖ Aerospace attitude reference systems                      ❖ Precision instrument leveling devices

HTS6 Analog Inclinometer Tilt Sensor Single Axis / Dual Axis 0~10V Voltage Output


Performance Parameters

HTS6

Condition

Parameter

Measurement Range

-

±10°

±30°

±60°

±90°

Measurement Axis

-

X / XY Axis

Zero Output

-

2.5V

Resolution1)

-

0.001°

Accuracy

Maximum Absolute Error (MAE)2)

Room Temp

0.005°

0.01°

0.02°

0.03°

Root Mean Square Error(RMSE)3)

Room Temp

0.003°

0.003°

0.005°

0.008°

Zero Temp Coefficient4)

-40~85℃

0.0005°/℃

Sensitivity Temp Coefficient5)

-40~85℃

≤100ppm/℃

Power-On Startup Time

0.5S

Response Frequency

20Hz

Electromagnetic Compatibility

According to EN61000 and GBT17626

Insulation Resistance

≥100MΩ

Shock Resistance

100g@11ms, 3 Axial Direction (Half Sinusoid)

Vibration Resistance

10grms, 10~1000Hz

Protection Class

IP67

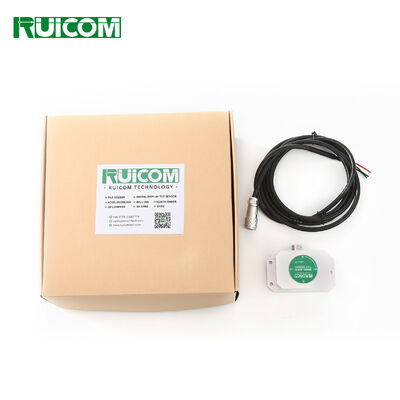

Cables

Standard 2m cable, wire diameter 6.8mm, wire weight<155g

Weight

≤270g (excluding cable)

1) Resolution: The smallest identifiable angular change within the effective measurement range, reflecting its ability to monitor minute tilt fluctuations.
2) MAXE: refers to the biggest error of the product within the range and at multiple angle points.
3) RMSE: refers to the root mean square difference between the measured value and the actual angle of the product within the range and for multiple times (more than 16 times).
4) Zero Temp Drift Coefficient: the change rate of the indication value relative to normal temperature within the rated operating temperature range of the sensor at the zero degree.
5) Sensitivity Temp Drift Coefficient: The percentage change rate with temperature of the full-scale indication relative to the full-scale indication at room temperature of the sensor in its rated operating temperature range.


Electrical Parameters

Parameter

Condition

Min

Typical Value

Max

Unit

Supply voltage

Standard

11.5

12

24

36

V

Operating current

No load



40



mA

Output load

Resistive

10





kΩ

Capacitive





20

nF

Operating temp



-40



+85

℃

Storage temp



-40



+85

℃


Interface Definition

PIN/Thread Color

Definition

Description

PIN1 / Red

DC11.5~36V

Power supply positive terminal

PIN2 / White

X_OUT

X-axis current output

PIN3 / Green

Y_OUT

Y-axis current output

PIN4 / Black

GND

Power supply negative terminal

PIN5 / Gray

signal ground

Signal ground

PIN6 / ----

NC

No connection

PIN7 / ----

NC

No connection



HTS6 Analog Inclinometer Tilt Sensor Single Axis / Dual Axis 0~10V Voltage Output

* Signal ground: The ground of the circuit that acquires and measures the voltage signal output by the sensor.

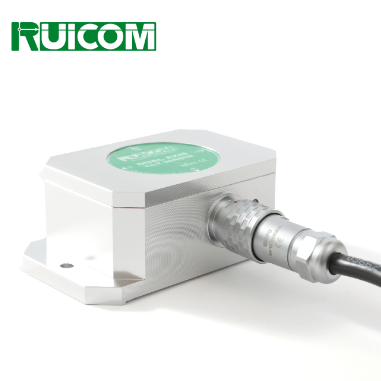

Product Dimensions

Case dimensions: L90×W61.6×H34mm

Recommended screws: 3 M4 screws

HTS6 Analog Inclinometer Tilt Sensor Single Axis / Dual Axis 0~10V Voltage Output
