| Brand Name: | RUICOM |
| Model Number: | WDF826FL |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 100000 pieces/year |

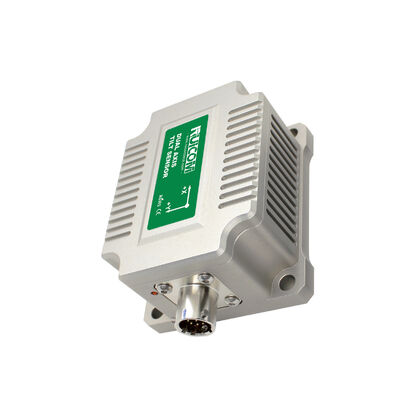

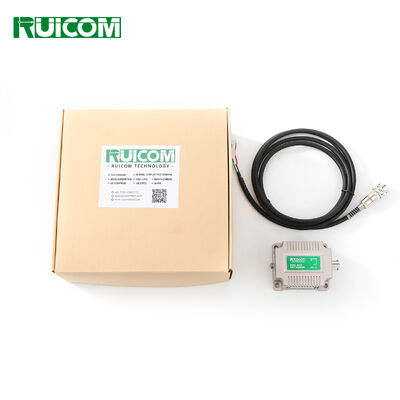

The WDS826FL is a professional dynamic tilt sensor specially developed for wind turbine tower sway monitoring. Featuring outstanding low-frequency response performance, it effectively captures slowly varying tilt signals, delivering precise measurement capabilities for low-frequency dynamic working scenarios.
Each unit undergoes full-temperature calibration, error compensation and long-term stability aging tests before delivery, ensuring consistent and reliable performance across diverse operating environments and prolonged service cycles.
The sensor supports dual output protocols including the industry-standard MODBUS protocol, and is equipped with professional supporting analysis software for real-time data display, recording and post-analysis. It offers flexible interface options among RS485, RS422 and RS232 to accommodate various system integration demands.
Adopting a non-contact measurement principle, the sensor enables effortless installation and convenient system integration. Users only need to fix the sensor on the measured surface with screws, and the system can automatically calculate real-time horizontal tilt angles.
With excellent electromagnetic interference immunity and superior vibration impact resistance, the WDS826FL is highly specialized for wind turbine tower swing monitoring and other matching industrial scenarios.
Technical Characteristics
❖ Dual-axis inclination measurement
❖ Selectable measuring range: ±10°
❖ Supports horizontal installation
❖ Ultra-high resolution: 0.0005°
❖ Excellent low-frequency response performance
❖ Optional output interfaces: RS485 / RS422 / RS232
Application Field
Typical application scenarios cover wind power condition monitoring, bridge and dam structural monitoring, ancient building safety monitoring, high-speed rail track detection, ground satellite communication vehicles, railway track gauge measurement, precision instrument leveling, geological equipment tilt monitoring, and engineering vehicle leveling control.
Specifications
|
WDS826FL |
Condition |
Parameters |
Unit |
|
Measure range |
- |
±10 |
° |
|
Measure axis |
- |
X Y |
axis |
|
Resolution 1) |
- |
0.0005 |
° |
|
Measure accuracy 2) |
Room temp |
0.05 |
° |
|
Zero temp coefficient 3) |
-40～85℃ |
0.0003 |
°/℃ |
|
Sensitivity temp. coefficient 4) |
-40～85℃ |
≤50 |
ppm/℃ |
|
Power on time |
|
<0.5 |
S |
|
Response frequency |
|
20 |
Hz |
|
Output rate |
5Hz / 10Hz / 25Hz / 35Hz / 50Hz / 100Hz Can be set |
||
|
Output signal |
RS485/RS232/RS422 Optional |
||
|
EMC |
According to EN61000 and GBT17626 |
||
|
MTBF |
≥98000 hour/time |
||
|
Insulation Resistance |
≥100 MΩ |
||
|
Shockproof |
100g@11ms / 3 Axial Direction (Half Sinusoid) |
||
|
Anti-vibration |
10grms / 10~1000Hz |
||
|
Protection grade |
IP67 |
||
|
Cables |
Standard 1 meter long wear-resistant, wide temperature, shielded cable, aviation connector, weight ≤150g |
||
|
Weight |
≤400g (Excluding cable) |
||
|
1)Resolution: The smallest change in the measured quantity that a sensor can detect and distinguish within its measurement range. |
|||
Electrical Parameters
|
Parameters |
Condition |
Min |
Standard |
Max |
Unit |
|
|
Power supply |
Standard |
9 |
12 |
24 |
36 |
V |
|
customized |
|
Other voltage |
|
V |
||
|
Working current |
12V |
|
33 |
|
mA |
|
|
24V |
|
19 |
|
mA |
||
|
Working temp |
|
-40 |
|
85 |
℃ |
|
|
Store temp |
|
-40 |
|
85 |
℃ |
|
Wiring Definition
RS232/RS485 Pin Color Definition
|
PIN/Wire Color |
Definition |
Description |
|
Pin1 / Red |
Dc9~36V |
Positive Power Terminal |
|
Pin2 / Black |
GND |
Negative Terminal Of Power Supply |
|
Pin3 / White |
Rs232_RXD / Rs485_D+ |
- |
|
Pin4 / Green |
Rs232_TXD / Rs485_D- |
- |
|
Pin5 / Gray |
Signal Ground |
Signal Ground |
|
Pin6 / -- |
- |
Internal Use In The Factory |
|
Pin7 / -- |
- |
Internal Use In The Factory |
RS422Pin Color Definition
|
PIN/Wire Color |
Definition |
Description |
|
Pin1 / Red |
DC9~36V |
Positive Power Terminal |
|
Pin2 / Black |
GND |
Negative Terminal Of Power Supply |
|
PIN3 / Orange |
RS422_RXD+ |
- |
|
PIN4 / Yellow |
RS422_RXD- |
- |
|
PIN5 / Green |
RS422_TXD+ |
- |
|
PIN6 / White |
RS422_TXD- |
- |
|
PIN7 / Gray |
Signal Ground |
Signal Ground |
|
PIN8 / -- |
- |
Internal Use In The Factory |
|
PIN9 / -- |
- |
Internal Use In The Factory |

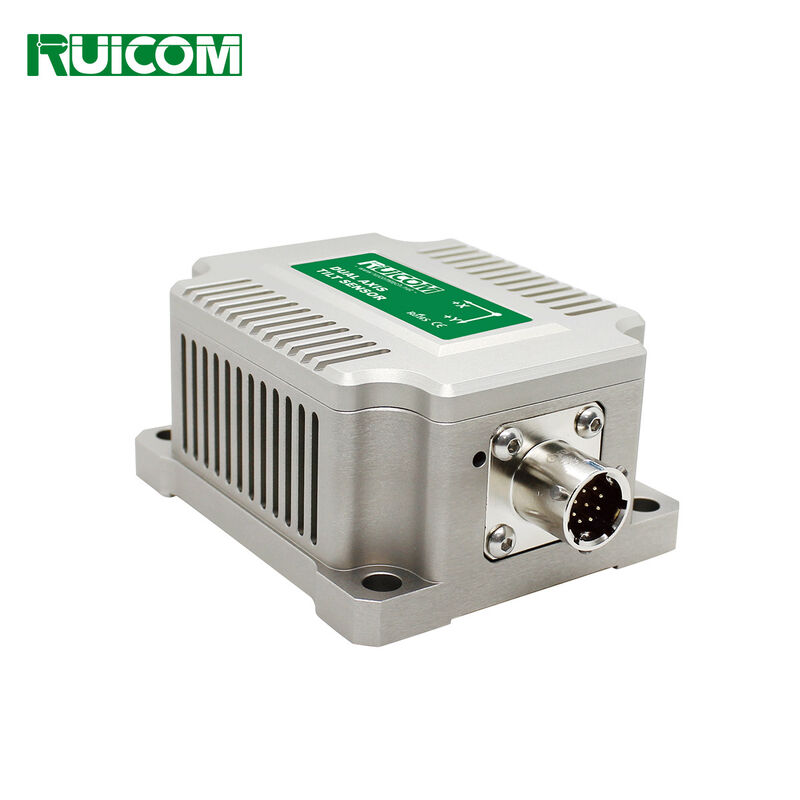

Product Dimensions
Shell size: L82 × W70 × H42mm
Installation size: L71 × W56 × H8mm
Suggested screws: 4 M6 screws
