| Brand Name: | RUICOM |
| Model Number: | GDS4290 |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 100000 pieces/year |

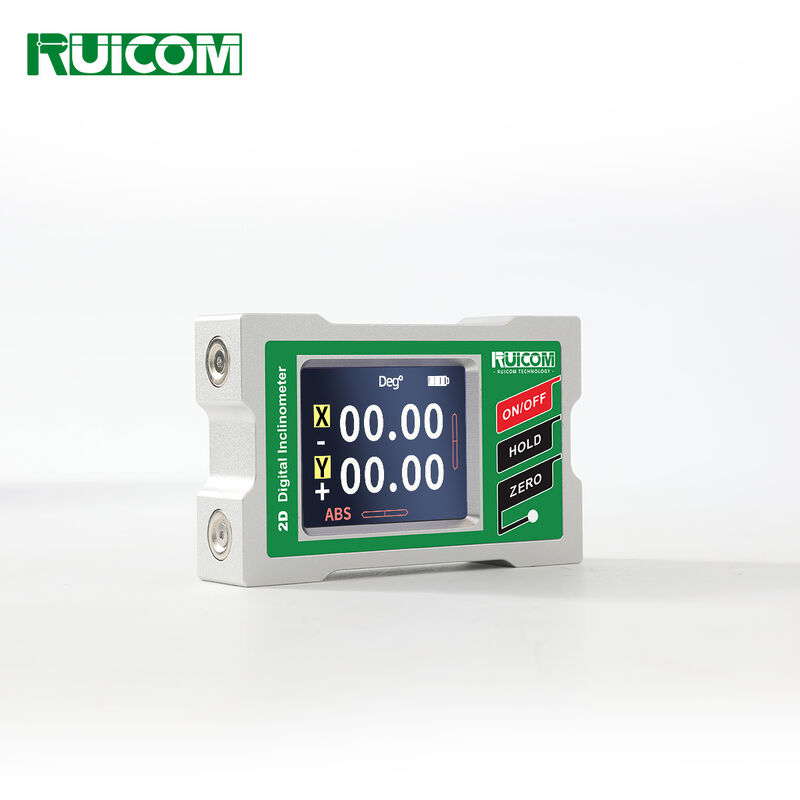

The GDS4 series is a high-precision digital inclinometer instrument independently developed by RUICOM Technology, specifically designed for angle control and measurement in industrial fields. The core of this product is based on a micro mechanical control system and a dual core measurement unit. During the measurement process, real-time compensation can be implemented on the X axis through the Y axis, and combined with cross compensation and temperature compensation model algorithms, fully utilizing the powerful computing power of micro mechanical electronic principles to ensure excellent measurement stability and repeatability of the instrument in long-term use.

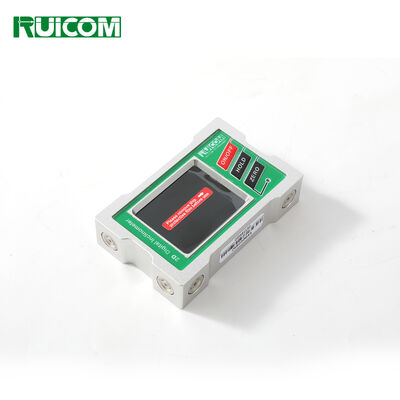

Among them, GDS41180 supports single axis ±180° measurement, GDS4290 supports dual axis ±90° measurement, with a resolution of 0.01° and a full range accuracy better than 0.05°. It has the characteristics of rapid response and stable data output. The product is specially designed with strong magnetic adsorption installation on the side and bottom in terms of structure, allowing both reference surfaces to be used for measurement, greatly improving the convenience of customer use.
This series of products not only has strong scalability and easy operation in practical applications, but also has industrial grade reliability and excellent cost-effectiveness, which gives it a significant competitive advantage in the international market.
Technical Characteristics
❖ Accuracy: 0.05°;
❖ Angle resolution: 0.01°;
❖ Operating temperature: -10℃ to+70℃;
❖ Range: single axis ±180°, dual axis ±90°;
❖ Absolute/relative measurement switchable;
❖ Strong magnetic adsorption design adapts to different installation requirements.
Application Field
❖ Construction Engineering Surveying ❖ Vehicle positioning and four-wheel calibration
❖ Pipeline laying and angle control ❖ Road surface and slope gradient detection
❖ Camera gimbal angle calibration ❖ Mechanical equipment installation and leveling
❖ Medical equipment posture measurement
Specifications
|
PARAMETERS |
GDS41180 |
GDS4290 |
Unit |
|
Measurement axis |
Single axis |
Dual axis |
/ |
|
Angle measurement range |
±180 |
±90 |
° |
|
Angle measurement accuracy |
0.05(full range) |
0.05(full range) |
° |
|
Angle measure resolution |
0.01 |
0.01 |
° |
|
mm/m measure range |
±999.9 |
±999.9 |
mm/m |
|
mm/m measurement accuracy |
0.9(full range) |
0.9(full range) |
mm/m |
|
mm/m measurement resolution |
0.1 |
0.1 |
mm/m |
|
LCD visible area size |
L40*W32 |
mm |
|
|
Working temperature |
-10～ +70 |
℃ |
|
|
Working humidity |
85 |
%RH |
|
|
Power supply |
3.7V Charging Lithium battery |
V |
|
|
Ideal charging time |
3 |
h |
|
|
Battery continuous working time |
8(±0.5) |
h |
|
|
Data output signal |
Type-C |
/ |
|
|
Anti-vibration |
10g@11ms,3 Axial Direction (Half Sinusoid) |
g |
|
|
Impact resistance |
10grms/10~100Hz |
g |
|
|
Waterproof level |
IP54 |
/ |
|
|
Material |
Metal aluminum |
/ |
|
|
Size |
L83*W19*H53mm |
mm |
|
|
Weight |
≤140 |
g |
|
Product Dimensions
Product dimensions: L83×W53×H19mm
Installation method: Strong magnetic adsorption at the bottom and left side
