| Brand Name: | RUICOM |
| Model Number: | DTS |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 100000 pieces/year |

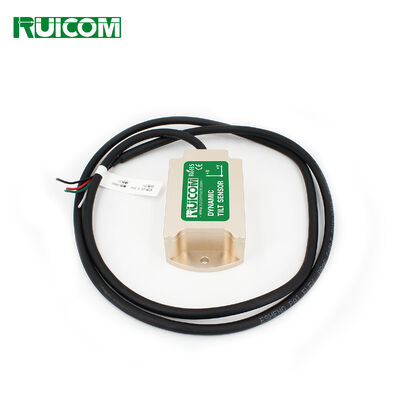

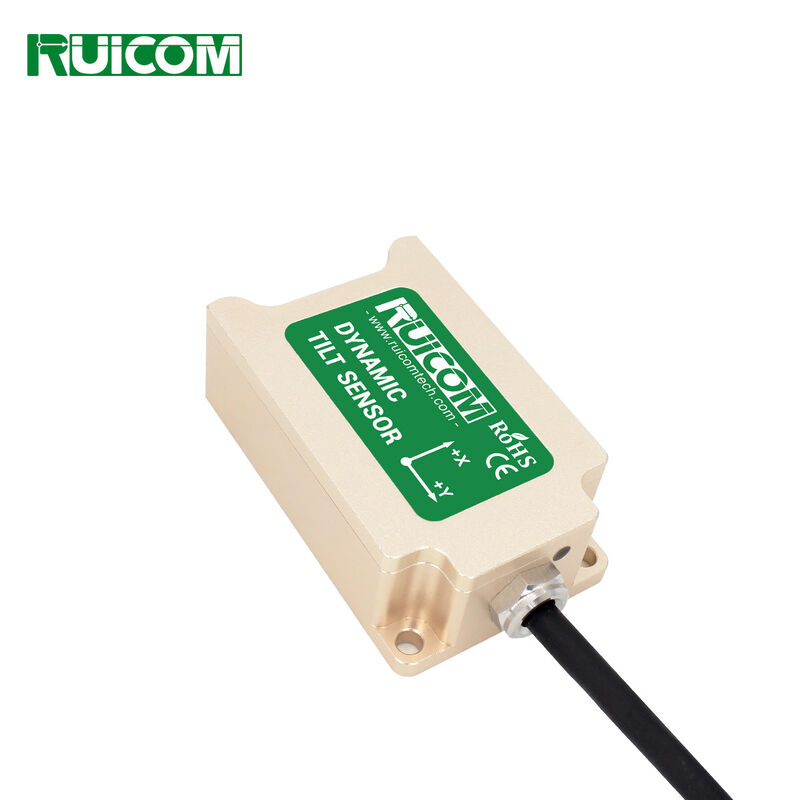

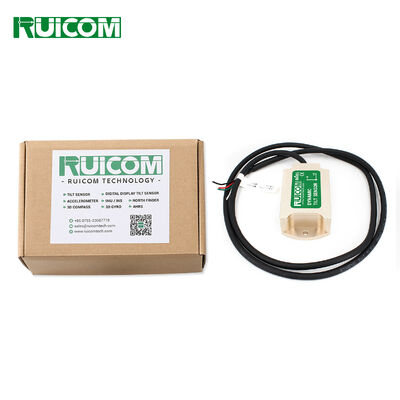

The DTS6-A1 is an industrial dynamic tilt sensor with 4-20mA current output, featuring superior vibration resistance for steady and dependable dynamic angle monitoring. Adopting a standard 4-20mA current loop output, it delivers real-time dual-axis attitude data and supports long-distance signal transmission up to 2000 meters, ensuring stable signal delivery in complex on-site conditions.
Integrated with a three-axis accelerometer and three-axis gyroscope, the sensor captures gravitational field components and angular rate data. With an embedded six-axis Kalman filtering algorithm, it computes high-precision dynamic tilt angles in real time and converts the attitude data into standard current signals. Thanks to outstanding anti-interference performance, the current output is highly adaptable to harsh industrial scenarios, especially for various construction machinery equipment.
Built upon advanced MEMS sensing technology, the core sensing unit undergoes factory calibration for temperature drift and nonlinear errors. It achieves a static accuracy of 0.03° within small measurement ranges, fully satisfying conventional high-precision industrial measurement demands. The compact and rugged structural design delivers excellent shock and vibration resistance. Optimized with RF suppression and EMC-compatible circuit design, the sensor performs reliably for trenchless underground construction machinery and other demanding industrial working environments.
Engineered for superior environmental adaptability and long-term reliability, the sensor adopts an industrial-grade MCU, fully conformal-coated PCB, durable imported cables and a wide-temperature metal shielded housing. Strict component selection and standardized manufacturing processes effectively improve long-term operational stability under industrial conditions, providing comprehensive performance advantages over mainstream competing products.
Technical Characteristics
❖ Selectable measuring range: ±1° to ±90°
❖ Dynamic measurement accuracy: ±0.3°
❖ Static measurement accuracy: ±0.05°
❖ Standard 4~20mA current signal output
Application Field
Typical application scenarios of this product series cover cranes and construction machines, agricultural equipment, mobile lifting platforms, fire engines, automated guided vehicles (AGVs), automatic assembly equipment, as well as boring and drilling works.
Performance Parameters
|
DTS6-A1 |
Condition |
Parameters |
Unit |
||||
|
Range |
|
±10 |
±30 |
±60 |
±90 |
±180 |
° |
|
Measurement Axis |
|
X Y |
X Y |
X Y |
X Y |
X |
Axis |
|
Zero Output |
0° Output |
12 |
12 |
12 |
12 |
12 |
mA |
|
Resolution |
|
0.01 |
0.01 |
0.02 |
0.03 |
0.05 |
° |
|
Dynamic Accuracy |
@25℃ |
0.3 |
0.3 |
0.3 |
0.5 |
0.5 |
° |
|
Static Accuracy |
@25℃ |
0.05 |
0.05 |
0.06 |
0.08 |
0.1 |
° |
|
Long-Term Stability |
|
0.05 |
0.05 |
0.05 |
0.05 |
0.05 |
° |
|
Zero Temp. Coefficient |
-40~85℃ |
±0.006 |
±0.006 |
±0.006 |
±0.006 |
±0.006 |
°/℃ |
|
Sensitivity Temp. Coefficient |
-40~85℃ |
≤100 |
≤100 |
≤100 |
≤100 |
≤100 |
ppm/℃ |
|
Power-On Startup Time |
|
1 |
1 |
1 |
1 |
1 |
S |
|
Response Time |
|
0.01 |
0.01 |
0.01 |
0.01 |
0.01 |
s |
|
Response Frequency |
|
20~100 |
20~100 |
20~100 |
20~100 |
20~100 |
Hz |
|
Electromagnetic Compatibility |
Compliant with EN61000 and GBT17626 |
||||||
|
Insulation Resistance |
≥100 megohms |
||||||
|
Shock Resistance |
100g@11ms, triaxial (half-sine wave) |
||||||
|
Vibration Resistance |
10grms /10~1000Hz |
||||||
|
Waterproof Rating |
IP67 |
||||||
|
Cable |
Standard 2-meter shielded cable |
||||||
|
Weight |
≤180g(excluding cable) |
||||||
|
Resolution: The smallest change in the measured quantity that the sensor can detect and distinguish within its measurement range. |
|||||||
Electrical Parameters
|
Parameters |
Condition |
MIN |
TYP |
MAX |
Unit |
|
|
Supply voltage |
Standard |
9 |
12 |
24 |
36 |
V |
|
Operating current |
|
|
50 |
|
mA |
|
|
Output load |
Resistive |
|
400 |
1000 |
Ω |
|
|
Operating temp |
|
-40 |
|
85 |
℃ |
|
|
Storage temp |
|
-40 |
|
85 |
℃ |
|
Interface Definition
|
Shell line color |
PCBA line color |
Definition |
Description |
|
Red |
Red |
DC9~36V |
Power supply positive terminal |
|
White |
Yellow |
X_OUT |
X-axis current output |
|
Green |
White |
Y_OUT |
Y-axis current output |
|
Black |
Black |
GND |
Power supply negative terminal |
Product Dimensions
PCBA Size
Case dimensions: L46×W35.5×H12.5mm
Recommended screws: 4 M3 screws
Shell Size
Case dimensions: L77.9×W42×H23mm
Recommended screws: 3 M4 screws
