| Brand Name: | RUICOM |
| Model Number: | DTS |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 100000 pieces/year |
Upper Computer Software Video:

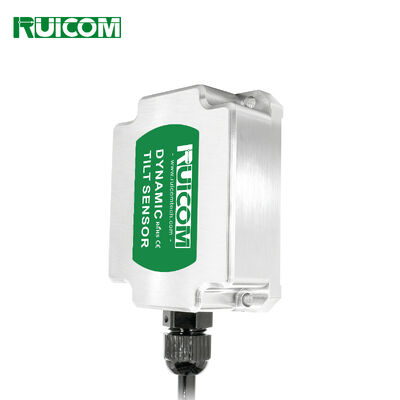

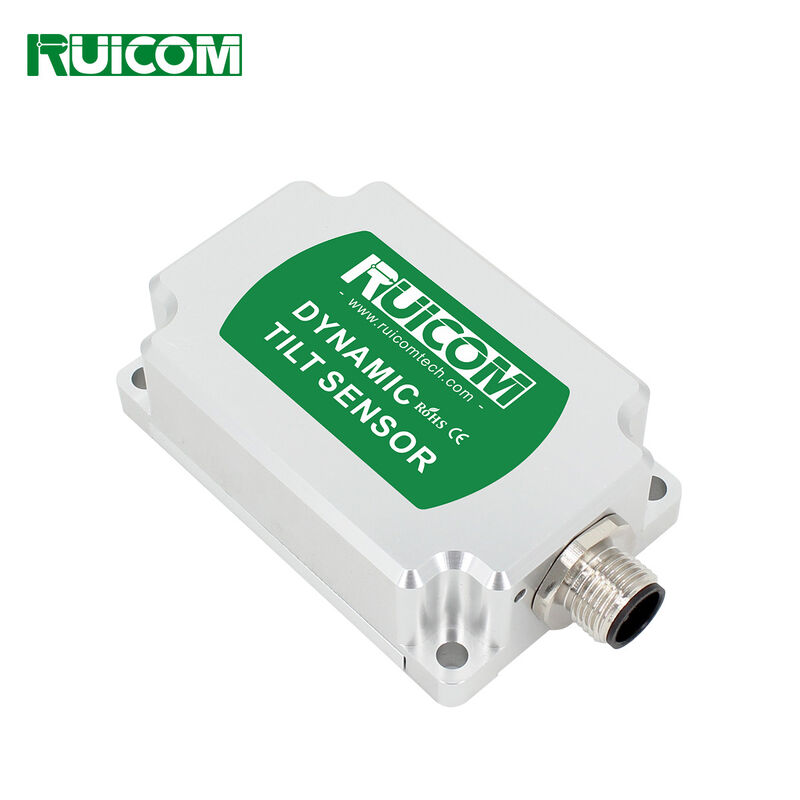

The DTS series is a high-performance digital MEMS dynamic tilt sensor independently developed by RUICOM Technology. Tailored for dynamic vehicle attitude monitoring, it precisely captures three-dimensional attitude parameters including roll, pitch and yaw angles, and excels at tilt detection under vibrating and moving operating conditions.
Equipped with a multi-axis MEMS inertial measurement unit (IMU) that integrates a 3-axis accelerometer and 3-axis gyroscope, the sensor adopts an adaptive Kalman filtering algorithm. It stably outputs high-precision real-time attitude data even in complex dynamic scenarios. Supporting multiple digital interfaces including RS485, RS232 and TTL, it features outstanding compatibility and effortless system integration.
Adopting a non-contact measurement principle, the sensor realizes real-time attitude solving without requiring a fixed reference mounting plane. Its built-in high-resolution ADC and gyro compensation module automatically calibrate nonlinear errors, axis coupling deviation, temperature drift and centrifugal acceleration interference. This effectively eliminates motion-induced measurement drift and greatly enhances dynamic accuracy, enabling stable long-term operation in harsh industrial environments.
Supporting both static and dynamic dual-mode measurement, the DTS sensor delivers excellent EMI resistance and superior tolerance to high-intensity mechanical shock and vibration. It is widely applied to attitude monitoring and control for industrial automation, construction machinery, rail transit and other demanding scenarios, serving as an optimal high-reliability attitude sensing solution for industrial-grade applications.
Technical Characteristics
❖ Dynamic Accuracy: ±0.1°
❖ Static Accuracy: ±0.05°
❖ Optional communication interfaces: RS485 / RS232 / TTL
❖ Measuring Range: Roll ±180°, Pitch ±90°, Yaw ±180°
Application Field
★ Leveling of construction machinery ★ Aircraft attitude control
★ Vessel attitude monitoring ★ Monitoring & control for agricultural machinery
★ Heavy shock & vibration crushing equipment ★ Monitoring and control of engineering vehicles
Performance Parameters
|
DTS |
Parameter |
|
|
Measurement Range(Initial value after power failure is 0°) |
Roll ±180°, Pitch ±90°, Azimuth ±180° |
|
|
Measurement Axis |
X-axis / Y-axis / Z-axis |
|
|
Roll and Pitch Resolution 1) |
0.01° |
|
|
Roll and Pitch Static Accuracy @25℃ |
±0.05° |
|
|
Roll and Pitch Dynamic Accuracy (rms) @25℃ |
±0.1° |
|
|
Gyroscope |
Gyroscope Range |
±300°/S |
|
Oblique Stability (10s Mean) |
8.5°/h |
|
|
Oblique Instability (allan) |
4.5°/h |
|
|
Angle Random Walk Coefficient (allan) |
0.25°/sqrt(h) |
|
|
Acceleration |
Acceleration range |
±4 / ±16(optional) |
|
Bias stability (10s mean) |
0.02mg |
|
|
Bias instability (allan) |
0.005mg |
|
|
Velocity random walk coefficient (allan) |
0.005m/s/sqrt(h) |
|
|
Zero-point temperature coefficient3)@-40～85℃ |
±0.01°/℃ |
|
|
Sensitivity temperature coefficient4)@-40～85℃ |
≤100ppm/℃ |
|
|
Power-on start-up time |
≤3.5s |
|
|
Response time |
0.01s |
|
|
Communication protocol |
RS485/RS232/TTL optional |
|
|
Electromagnetic compatibility |
According to EN61000 and GBT17626 |
|
|
Mean time between failures (MTBF) |
≥98000 hours/time |
|
|
Insulation resistance |
≥100 megaohm |
|
|
Shock resistance |
100g@11ms, triaxial (half-sine wave) |
|
|
Vibration resistance |
10grms,10～1000Hz |
|
|
Protection class |
IP67 / IP68(optional) |
|
|
Weight |
Single connector ≤165g (excluding cable) / Dual connector ≤180g (excluding cable) |
|
|
1) Resolution: The smallest angular change that the sensor can detect within its effective range, reflecting its ability to monitor minute tilt fluctuations. |
||
Electrical Parameters
|
Parameters |
Condition |
Minimum Value |
Typical Value |
Maximum Value |
Unit |
|
|
Power supply voltage |
Standard |
9 |
12 |
24 |
36 |
V |
|
|
Other voltage |
|
|
|||
|
Operating current |
No load |
|
40mA(12V) |
|
mA |
|
|
|
|
|
||||
|
Operating temperature |
|
-40 |
|
85 |
℃ |
|
|
Storage temperature |
|
-40 |
|
85 |
℃ |
|
Interface Definition
|
PIN/Thread Color |
Definition |
Description |
|
|
PIN1 / Brown |
9~36V |
Power supply positive terminal |
|
|
PIN2 / White |
RS232_RXD/TTL_RXD/485_D+ |
Signal output |
|
|
PIN3 / Blue |
RS232_TXD/TTL_TXD/485_D- |
Signal output |
|
|
PIN4 / Black |
GND |
Power supply negative terminal |
|
|
PIN5 / Gray |
PE |
Protective ground |
|
Connector pin definition diagram PCBA board wiring definition diagram
Product Dimensions
PCBA Dimension Diagram
Single panel dimensions: L39×W37×H12.2mm
Installation dimensions: L35×W28mm
Single-head (male) connector housing dimension drawing
Shell Size: L83×W47×H22.5mm
Recommended screws: 4 M5 screws
head (male and female) connector housing dimension diagram
Shell Size: L96×W47×H22.5mm
Recommended screws: 4 M5 screws
Corrosion-resistant shell size diagram
Shell Size: L95.3×W56×H24.5mm
Recommended screws: 4 M5 screws
