Bluetooth AHRS
>

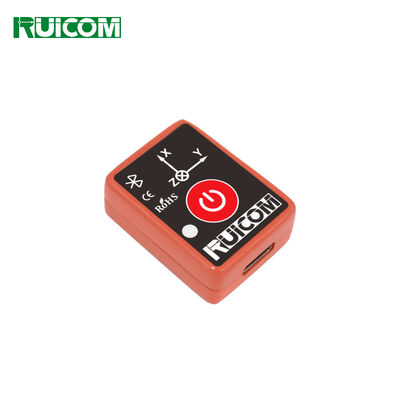

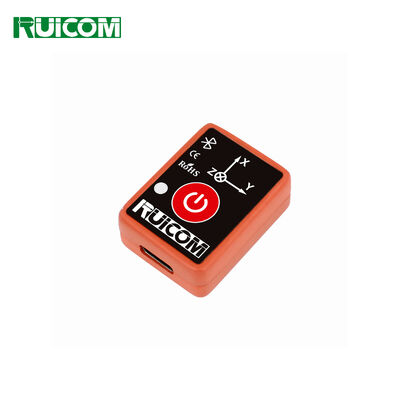

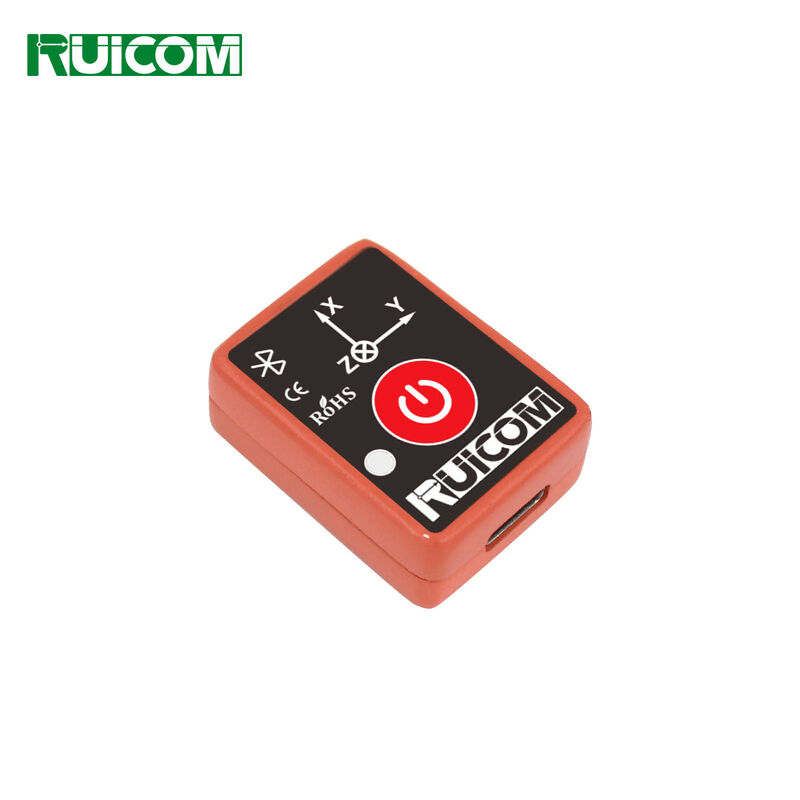

GMU200-BL Nine Axis Bluetooth AHRS Attitude Sensor for Marine

GMU200-BL Nine Axis Bluetooth AHRS Attitude Sensor for Marine

Brand Name: RUICOM
Model Number: GMU200-BL
MOQ: 1
Payment Terms: T/T
Supply Ability: 100000 pieces/year
Detail Information
Place of Origin:
Shenzhen, China
Certification:
CE, RoHS
Installation Direction:
Horizontal / Horizontal Downwards / Vertical / Vertical Leftwards / Vertical Rightwards
Application Scope:
Marine Applications / Construction Excavators / Construction Pile Drivers / Vehicle-Mounted Applications / Mining Truck Applications / Tower Cranes
Supply Ability:
100000 pieces/year
Highlight:

Nine Axis Bluetooth AHRS

,

Bluetooth AHRS Attitude Sensor

,

Marine Nine Axis Attitude Sensor

Product Description

The GMU200-BL is a cost-effective miniature AHRS attitude reference system built for equipment demanding superior dynamic balance performance, including model flight units, robots, agricultural machinery, engineering vehicles and forklifts. It acquires raw sensor data and applies a Kalman filter algorithm to output real-time attitude information.

Combining a 3-axis accelerometer, 3-axis magnetometer and 3-axis gyroscope with embedded temperature compensation, it delivers reliable stability and fast response across the full attitude range for diverse dynamic attitude monitoring tasks. Beyond attitude angles, it outputs complete nine-axis data: 3-axis acceleration, 3-axis gyro and 3-axis magnetic field readings. Users can adjust and extend system operating parameters to match different host platforms.

It adopts Bluetooth wireless transmission with a Bluetooth 5.1 BLE module and 2.4GHz adaptive frequency hopping. It achieves a line-of-sight transmission distance of up to 40 meters in open, unobstructed conditions. BLE DFU wireless firmware update is supported, bringing greater flexibility for industrial on-site deployment.


Technical Characteristics

❖ Sensor: Integrated 9-axis sensor + temperature sensor
❖ Communication: Bluetooth 5.1 wireless transmission
❖ Operation Mode: Supports VRU and AHRS
❖ Function: Real-time 3D dynamic measurement
❖ Feature: Compact structure, easy installation


Application Field

❖ Medical rehabilitation equipment monitoring              ❖ Limb rehabilitation monitoring

❖ Human body capture                                               ❖ Posture angle monitoring

GMU200-BL Nine Axis Bluetooth AHRS Attitude Sensor for Marine


Performance Parameters

GMU200-BL

Parameter

Measurement Range

Roll ±180°, Pitch ±90°, Azimuth ±180° (In VRU mode, the initial value after Bluetooth disconnection and reconnection is 0°; in AHRS mode, the output is the magnetic heading angle)

Measurement Axis

X Axis / Y Axis / Z Axis

Roll and Pitch Static Accuracy 1)

±0.1°  (@25℃)

Roll and Pitch Dynamic Accuracy (rms)

±0.25°  (@25℃)

Magnetic Heading Accuracy (AHRS)

±1.5°  (@25℃)

Gyroscope

Gyroscope Range (Adjustable)

±125°/s, ±250°/s, ±500°/s, ±1000°/s, ±2000°/s

Zero-Bias Stability (10s Smoothing)

10°/h

Zero-Bias Instabilit(Allan)

5°/h

Angle Random Walk Coefficient(Allan)

0.25°/sqrt(h)

Accelerometer

Acceleration Range (Settable)

±2g, ±4g, ±8g, ±16g

Bias Stability (10s Mean)

0.1mg

Bias Instability(Allan)

0.05mg

Velocity Random Walk Coefficient (Allan)

0.005m/s/sqrt(h)

Magnetometer

Magnetometer range

±8Gauss

Resolution

<2.5mgauss

Bandwidth

<100Hz

Other

Zero-point temperature coefficient 2)

±0.01°/℃  (@-20~65℃)

Sensitivity temperature coefficient 3)

≤100ppm/℃  (@-20~65℃)

Power-on time

≤3.5S

Response time

0.01S

Electromagnetic compatibility

According to EN61000 and GBT17626

Receiver sensitivity

-96dBm

Transmit power

8dBm

Bluetooth transmission distance

40m (in an open, unobstructed area)

Usage time (fully charged battery)

Continuous operation for 6 hours,standby time for 83 days

Insulation resistance

≥100 megohms

Shock resistance

100g@11ms, triaxial (half-sine wave)

Vibration resistance

10grms , 10~1000Hz

Casing material

ABS plastic housing

Weight

≤20g

1) Accuracy: Refers to the root mean square difference between the measured value and the actual angle error after multiple angle measurements (>16 times) under normal temperature conditions.
2) Zero-point temperature coefficient: Refers to the rate of change of the sensor's reading relative to normal temperature within its rated operating temperature range when the sensor is at zero.
3) Sensitivity temperature coefficient: Refers to the rate of change of the sensor's full-scale reading within its rated operating temperature range relative to its full-scale reading at normal temperature as a percentage of temperature.


Battery Parameters

Item

Parameter

Nominal Capacity

100mAh

Nominal Voltage

3.7V

Charging Cut-off Voltage

4.20


Electrical Parameters

Parameters

Condition

MIN

TYP

MAX

Unit

Charging Voltage (DC)

Standard

4.5V

5V

5.5

V

Charging Current





0.1



A

Charging Temperature

0~+55℃ (Note: Charging temperatures that are too high or too low can damage the battery)



Charging Interface

Type-C interface



Charging Time

2.5 hours(25℃)



Operating Current





18



mA

Power Off and Sleep Current





50



uA

Operating Temp



-20



+70

℃

Storage Temp



-20



+70

℃


Product Dimensions

Shell Size: L32×W24×H17mm

GMU200-BL Nine Axis Bluetooth AHRS Attitude Sensor for Marine


Charging Case Dimensions Diagram

Shell: L172×W30×H22mm

Material: 3D printed plastic material

GMU200-BL Nine Axis Bluetooth AHRS Attitude Sensor for Marine
