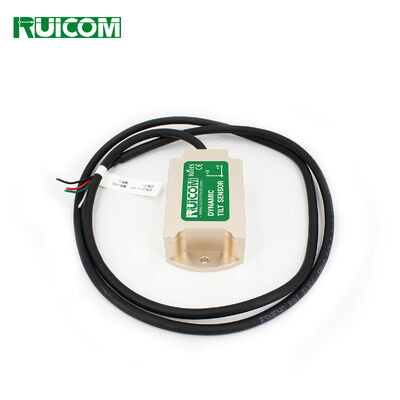

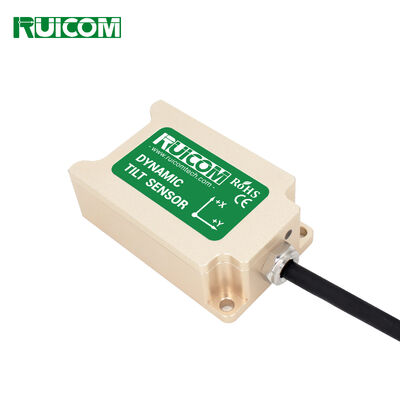

| Brand Name: | RUICOM |
| Model Number: | DTS6-V1 |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 100000 pieces/year |
Technical Characteristics
❖ Selectable tilt measurement range: ±1° to ±90°
❖ Dynamic measurement accuracy: ±0.3°
❖ Static measurement accuracy: ±0.05°
❖ Analog output: 0~5V voltage signal
Application Field
Typical application scenarios include cranes and construction equipment, agricultural machinery, mobile lifting platforms, fire trucks, automated guided vehicles (AGVs), automatic assembly machines, and boring & drilling operations.
Performance Parameters
|
DTS6-V1 |
Condition |
Parameters |
Unit |
||||
|
Range |
|
±10 |
±30 |
±60 |
±90 |
±180 |
° |
|
Measurement Axis |
|
X/XY |
X/XY |
X/XY |
X/XY |
X |
Axis |
|
Zero Output |
0° output |
2.5 |
2.5 |
2.5 |
2.5 |
2.5 |
V |
|
Resolution |
|
0.01 |
0.01 |
0.02 |
0.03 |
0.05 |
° |
|
Dynamic Accuracy |
@25℃ |
0.3 |
0.3 |
0.3 |
0.5 |
0.5 |
° |
|
Static Accuracy |
@25℃ |
0.05 |
0.05 |
0.06 |
0.08 |
0.1 |
° |
|
Long-Term Stability |
|
0.05 |
0.05 |
0.05 |
0.05 |
0.05 |
° |
|
Zero Temp. Coefficient |
-40~85℃ |
±0.006 |
±0.006 |
±0.006 |
±0.006 |
±0.006 |
°/℃ |
|
Sensitivity Temp. Coefficient |
-40~85℃ |
≤100 |
≤100 |
≤100 |
≤100 |
≤100 |
ppm/℃ |
|
Power-On Startup Time |
|
1 |
1 |
1 |
1 |
1 |
S |
|
Response Time |
|
0.01 |
0.01 |
0.01 |
0.01 |
0.01 |
s |
|
Response Frequency |
|
20~100 |
20~100 |
20~100 |
20~100 |
20~100 |
Hz |
|
Electromagnetic Compatibility |
Compliant with EN61000 and GBT17626 |
||||||
|
Insulation Resistance |
≥100 megohms |
||||||
|
Shock Resistance |
100g@11ms, triaxial (half-sine wave) |
||||||
|
Vibration Resistance |
10grms / 10~1000Hz |
||||||
|
Waterproof Rating |
IP67 |
||||||
|
Cable |
Standard 2-meter shielded cable |
||||||
|
Weight |
≤180g(excluding cable) |
||||||
|
Resolution: The smallest change in the measured quantity that the sensor can detect and distinguish within its measurement range. |
|||||||
Electrical Parameters
|
Parameters |
Condition |
Min |
Typ |
Max |
Unit |
|
Supply voltage |
Standard |
9 |
12,24 |
36 |
V |
|
Optional |
|
5 |
|
V |
|
|
Operating current |
|
|
30 |
|
mA |
|
Output load |
Resistive |
10 |
|
|
kΩ |
|
Capacitive |
|
|
20 |
nF |
|
|
Operating Temp |
|
-40 |
|
85 |
℃ |
|
Storage Temp |
|
-40 |
|
85 |
℃ |
Interface Definition
|
Shell line color |
PCBA line color |
Definition |
Description |
|
Red |
Red |
DC9~36V |
Power supply positive terminal |
|
White |
Yellow |
X_OUT |
X-axis voltage output |
|
Green |
White |
Y_OUT |
Y-axis voltage output |
|
Black |
Black |
GND |
Power supply negative terminal |
Product Dimensions
PCBA Size
Case dimensions: L46*W35.5*H12.5(mm)
Recommended screws: 4 M3 screws
Shell Size
Case dimensions: L77.9*W42*H23(mm)
Recommended screws: 3 M4 screws
