| Brand Name: | RUICOM |
| Model Number: | GDS8 |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 100000 pieces/year |
Product Features
Technical Characteristics
❖ Full-range accuracy: better than 0.005°
❖ Repeatability error: ≤0.003°
❖ Supports absolute and relative measurement switching
❖ Built-in data recording function for key measurement data
❖ High-strength magnetic adsorption design for multi-scenario installation
❖ Customizable angle over-limit alarm function
Application Field
❖ Architectural surveying ❖ Vehicle alignment and four-wheel calibration
❖ Road & slope gradient detection ❖ Pipeline laying and angle control
❖ Mechanical equipment installation and leveling ❖ Tooling & fixture leveling and control
❖ Camera pan-tilt angle calibration ❖ Medical equipment attitude measurement
Specifications
|
Parameter |
GDS810 |
GDS820 |
Unit |
|||
|
Measuring Axis |
Single-axis |
Dual-axis |
Dual-axis |
Axis |
||
|
Angle Measurement Range |
±15° |
±30° |
±45° |
±15° |
±30° |
° |
|
Angle Measurement Accuracy (Full Range) |
<0.005 |
<0.01 |
<0.03 |
<0.005 |
<0.01 |
° |
|
Angle Measurement Resolution |
0.001 |
0.001 |
0.001 |
0.001 |
0.001 |
° |
|
mm/m Measurement Range |
267 |
577 |
1035 |
267 |
577 |
mm/m |
|
mm/m Measurement Accuracy |
0.1 |
0.2 |
0.5 |
0.1 |
0.2 |
mm/m |
|
mm/m Measurement Resolution |
0.02 |
0.02 |
0.02 |
0.02 |
0.02 |
mm/m |
|
Repeatability |
0.003 |
0.003 |
0.003 |
0.003 |
0.003 |
° |
|
Measurement Mode |
Three modes can be set: angle, degrees/minutes/seconds, and millimeters/meters. |
|||||
|
Operating Temp |
-10℃~ +70℃ |
|||||
|
Operating Humidity |
85%RH |
|||||
|
Power Supply |
3.7V |
|||||
|
Ideal Charging Time |
5 hours |
|||||
|
Battery Continuous Operating Time |
11 hours |
|||||
|
Data Output Signal |
Type-C |
|||||
|
Included Host Computer Software |
VC application software |
|||||
|
Vibration Resistance |
10g@11ms, triaxial (half-sine wave) |
|||||
|
Shock Resistance |
10grms / 10~100Hz |
|||||
|
Waterproof Rating |
IP54 |
|||||
|
Material |
Anodized aluminum alloy |
|||||
|

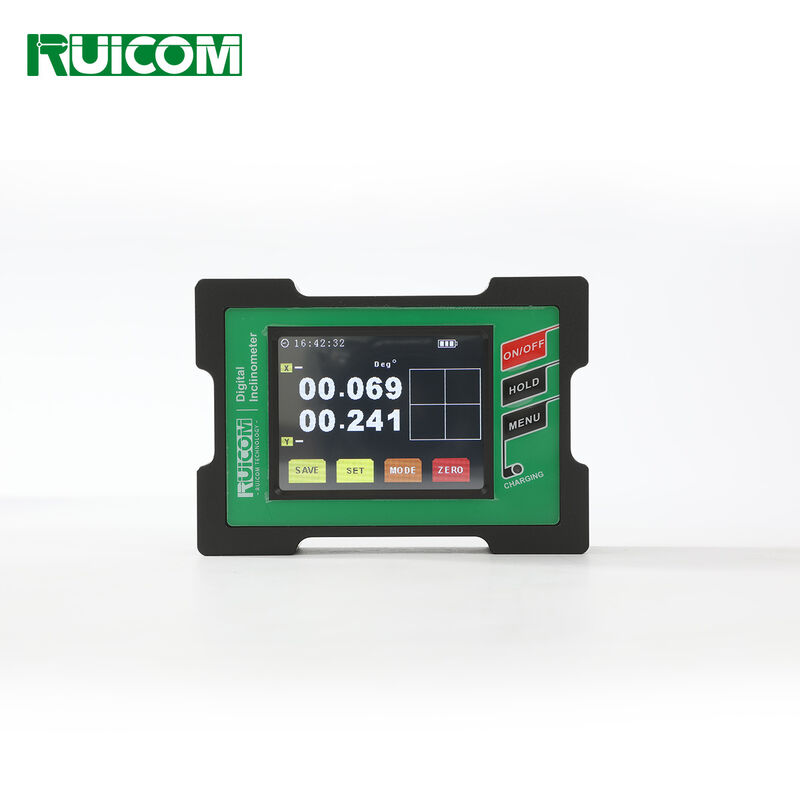

LCD Screen |
64-color true-color luminous display screen |
|||||
|
LCD Viewable Area Size |
L57.6*W43.2mm |
|||||
|
Dimensions |
L109×W77×H27mm |
|||||
|
Weight |
≤350g |
|||||
Product Dimensions
Shell: 109×77×27mm

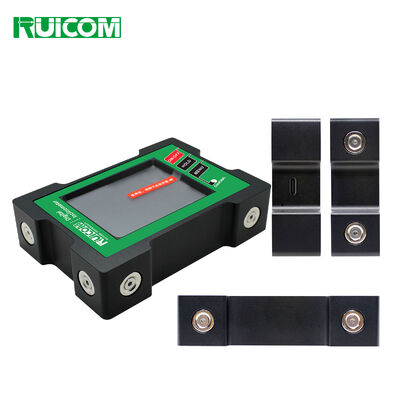

Strong magnetic adsorption installation on the left and bottom sides
